LTMM-115-02-S-D-RA

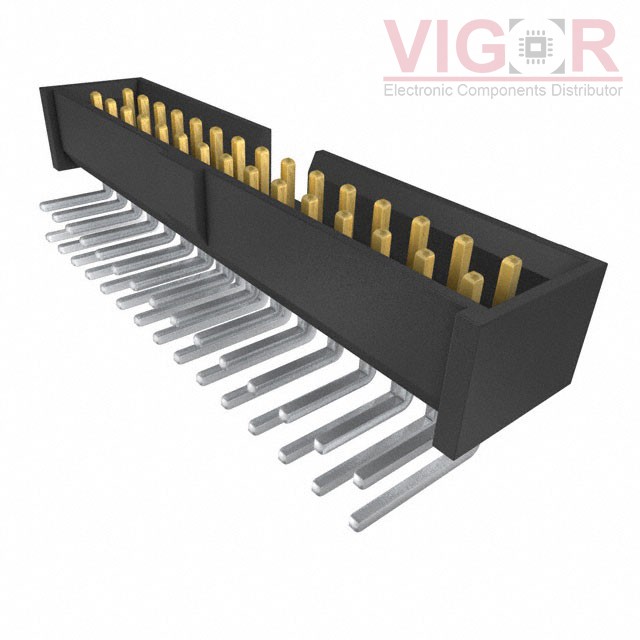

Image is for reference,
please contact us to get the real picture

Part No :: LTMM-115-02-S-D-RA

Manufacturer: Samtec, Inc.

Description: CONN HEADER R/A 30POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: LTMM-115-02-S-D-RA PDF

Availability: 0 pieces

Unit Price: ~~$10.28167~~

Current price of LTMM-115-02-S-D-RA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LTMM-115-02-S-D-RA Specifications

Type	Description
Series:	Flex Stack, LTMM
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	30
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	0.090" (2.29mm)
Overall Contact Length:	-
Insulation Height:	0.237" (6.03mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Keying Slot
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
