15120402601000

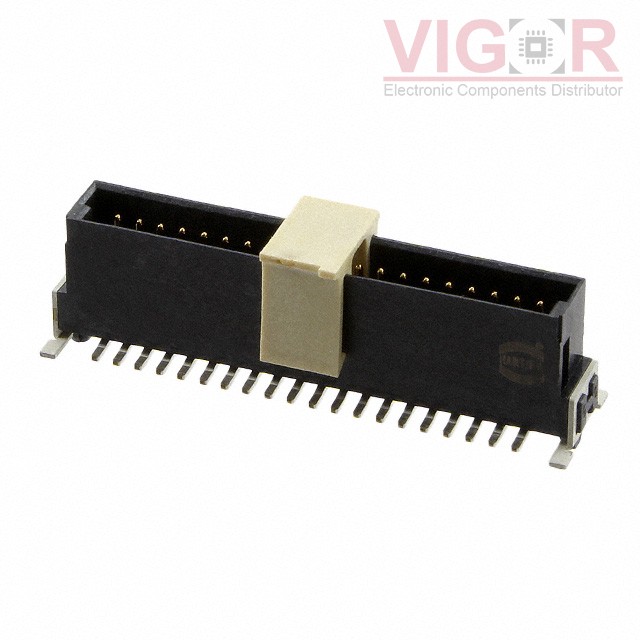

Product image
Product thumb
Part No :

15120402601000

Manufacturer
HARTING
VIGOR # :

3066251

Description
CONN HEADER SMD 40POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
15120402601000 PDF
Country of origin
-
Date code
-
ads
15120402601000 Specifications
Type Description
Series:har-flex®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.319" (8.10mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide, Pick and Place, Solder Retention
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 150
Shipped from
HK warehouse
Expected Shipping Date
Dec 30 - Jan 03 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.60 $5.60
280 $3.92 $1 098.88
560 $3.81 $2 134.96
840 $3.48 $2 919.88
1400 $3.25 $4 552.51
1960 $3.14 $6 153.71
2800 $3.03 $8 477.08

Current price of 15120402601000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
