1718130004

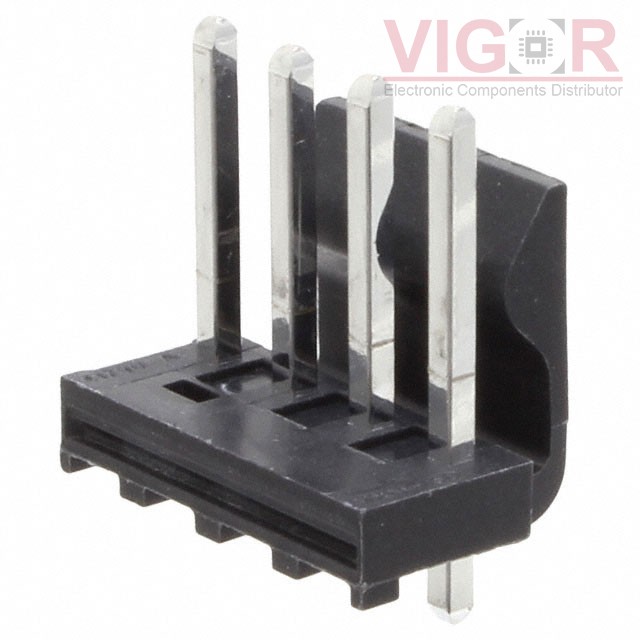

Product image
Product thumb
Part No :

1718130004

Manufacturer
Woodhead - Molex
VIGOR # :

3066321

Description
CONN HEADER VERT 4POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1718130004 PDF
Country of origin
-
Date code
-
ads
1718130004 Specifications
Type Description
Series:KK396, 171813
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.448" (11.38mm)
Contact Length - Post:0.093" (2.35mm)
Overall Contact Length:0.671" (17.05mm)
Insulation Height:0.446" (11.33mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 3441
Shipped from
HK warehouse
Expected Shipping Date
Jan 25 - Jan 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.58 $0.58
10 $0.54 $5.42
100 $0.42 $41.56
500 $0.36 $180.70
1000 $0.30 $298.16
5000 $0.26 $1 310.10
10000 $0.24 $2 439.50

Current price of 1718130004 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
