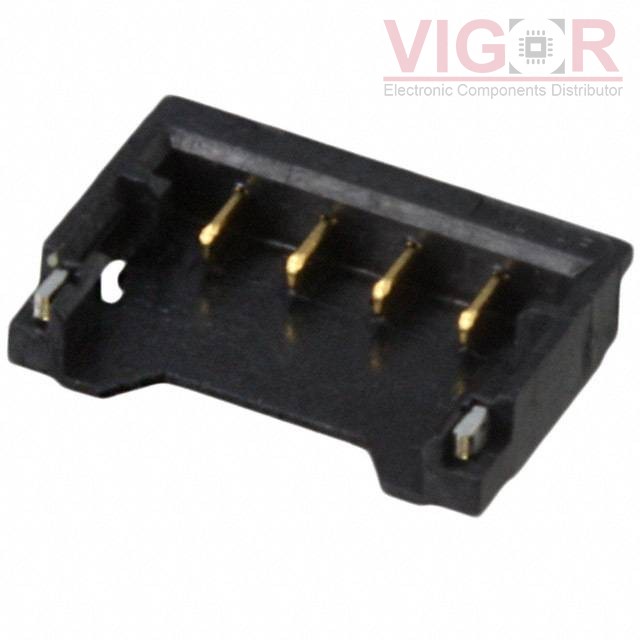

| Type | Description |
|---|---|
| Series: | Pico-EZmate 78171 |
| Package: | Tape & Reel (TR)Cut Tape (CT) |
| Part Status: | Active |
| Connector Type: | Plug |
| Contact Type: | Tab |
| Pitch - Mating: | 0.047" (1.20mm) |
| Number of Positions: | 4 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 3 Wall |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Friction Lock |
| Contact Length - Mating: | - |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.055" (1.40mm) |
| Contact Shape: | Rectangular |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | - |
| Contact Finish - Post: | - |
| Contact Material: | Copper Alloy |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Features: | Solder Retention |
| Operating Temperature: | -25°C ~ 85°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | 50V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 4500 | ||
| 9000 | ||
| 13500 | ||
| 31500 |
Current price of 0781710004 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
