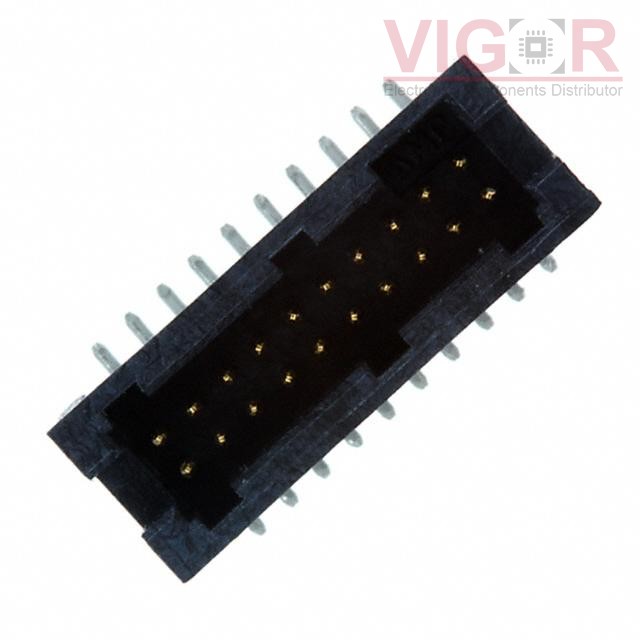

5-104656-2

Product image
Product thumb
Part No :

5-104656-2

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3066497

Description
CONN HEADER SMD 20POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
5-104656-2 PDF
Country of origin
-
Date code
-
ads
5-104656-2 Specifications
Type Description
Series:AMPMODU 50/50 Grid
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.298" (7.57mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Lock
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A per Contact
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2612
Shipped from
HK warehouse
Expected Shipping Date
Feb 03 - Feb 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.58 $4.58
33 $4.01 $132.18
132 $3.62 $478.37
528 $3.05 $1 611.37
1023 $2.67 $2 731.77

Current price of 5-104656-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

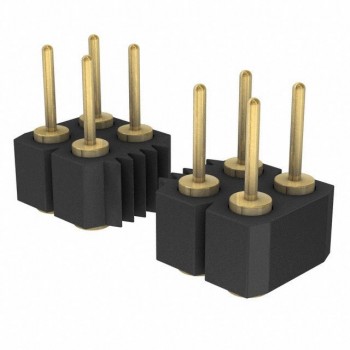

450-10-256-01-899101

450-10-256-01-899101

CONN HEADER SMD 56POS 2.54MM

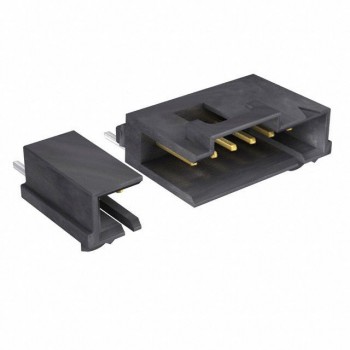

0015912255

0015912255

CONN HEADER SMD R/A 25POS 2.54MM

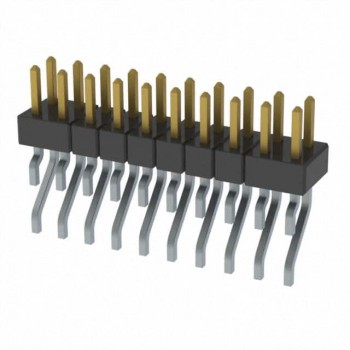

MMT-110-01-F-DH
