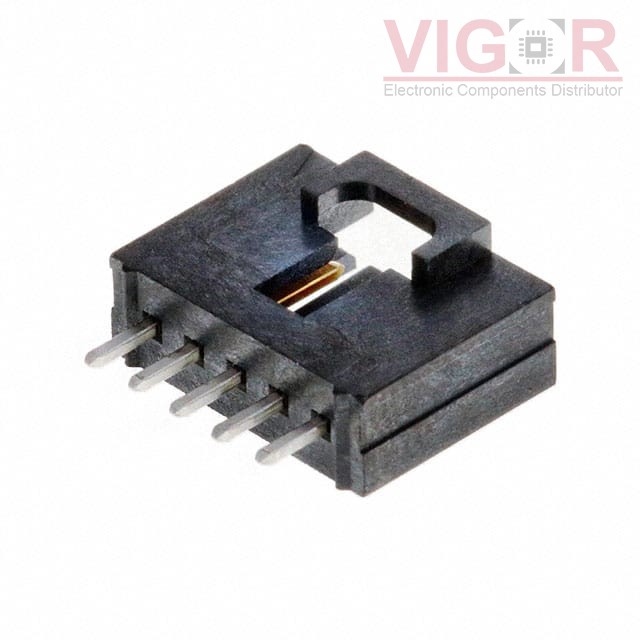

Product image
Product thumb
Part No :

1719710105

Manufacturer
Woodhead - Molex
VIGOR # :

3066988

Description
CONN HEADER VERT 5POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1719710105 PDF
Country of origin
-
Date code
-
ads
1719710105 Specifications
Type Description
Series:SL 171971
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.465" (11.80mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Polarizing Key
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1514
Shipped from
HK warehouse
Expected Shipping Date
Jan 23 - Jan 27 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.40 $1.40
35 $1.19 $41.66
105 $1.09 $114.11
525 $0.91 $475.45
1015 $0.78 $787.89
5005 $0.69 $3 444.84
10010 $0.67 $6 734.23

Current price of 1719710105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
FTMH-116-02-F-DV-P

FTMH-116-02-F-DV-P

CONN HEADER SMD 32POS 1MM

TSM-108-01-L-DV-016-P-TR

TSM-108-01-L-DV-016-P-TR

CONN HEADER SMD 16POS 2.54MM

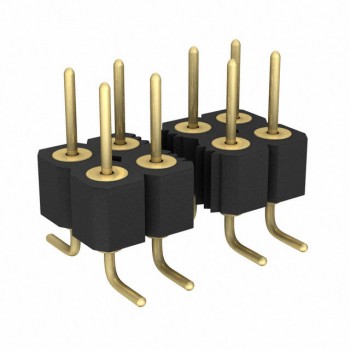

802-10-016-30-001191
