292206-4

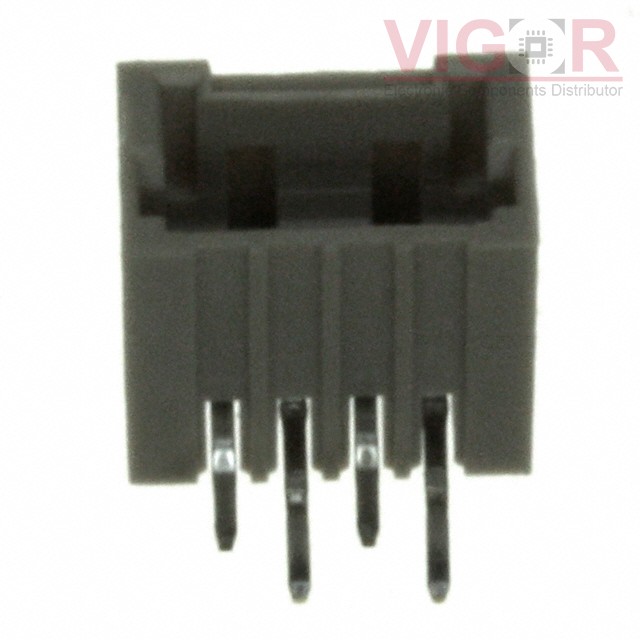

Product image
Product thumb
Part No :

292206-4

Manufacturer
VIGOR # :

3067138

Description
CONN HEADER R/A 4POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
292206-4 PDF
Country of origin
-
Date code
-
ads
292206-4 Specifications
Type Description
Series:Mini CT
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.193" (4.90mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Gray
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 19787
Shipped from
HK warehouse
Expected Shipping Date
Apr 08 - Apr 12 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.5800 $0.58
10 $0.5433 $5.43
100 $0.4244 $42.44
500 $0.3735 $186.75
1000 $0.3141 $314.09
5000 $0.2801 $1 400.65
10000 $0.2632 $2 631.60

Current price of 292206-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
PEC16DACN

PEC16DACN

CONN HEADER VERT 32POS 2.54MM

TSM-115-01-L-DV-A-P-TR

TSM-115-01-L-DV-A-P-TR

CONN HEADER SMD 30POS 2.54MM

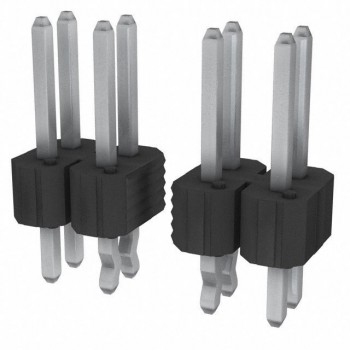

69192-450HLF
