54202-S0820ALF

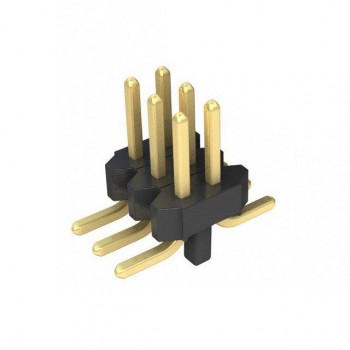

Image is for reference,
please contact us to get the real picture

Part No :: 54202-S0820ALF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER SMD 40POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 54202-S0820ALF PDF

Availability: 0 pieces

Unit Price: ~~$1.60282~~

Current price of 54202-S0820ALF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

54202-S0820ALF Specifications

Type	Description
Series:	BERGSTIK®
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	40
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold, GXT™
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	-
Features:	Pick and Place
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
