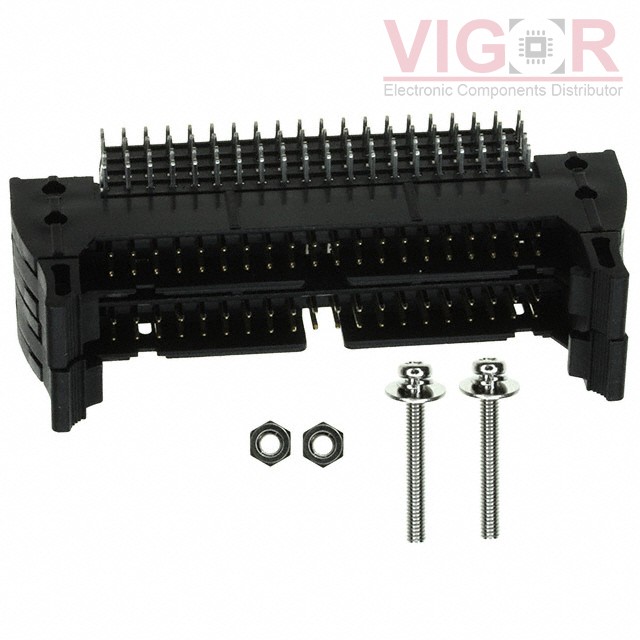

XG4A-4039-A

Image is for reference,
please contact us to get the real picture

Part No :: XG4A-4039-A

Manufacturer: Omron Electronics Components

Description: CONN HEADER R/A 40POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: XG4A-4039-A PDF

Availability: 129 pieces

Unit Price: ~~$14.52000~~

Current price of XG4A-4039-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XG4A-4039-A Specifications

Type	Description
Series:	XG4
Package:	Tray
Part Status:	Active
Connector Type:	Header, Stackable (2)
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	40, 40
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks, Long
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.669" (17.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	5.90µin (0.150µm)
Contact Finish - Post:	Tin
Contact Material:	Brass, Nickel
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Keying Slot, Mounting Flange, Mounting Hardware
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	300V
