1734829-8

Part No :: 1734829-8

Manufacturer: TE Connectivity AMP Connectors

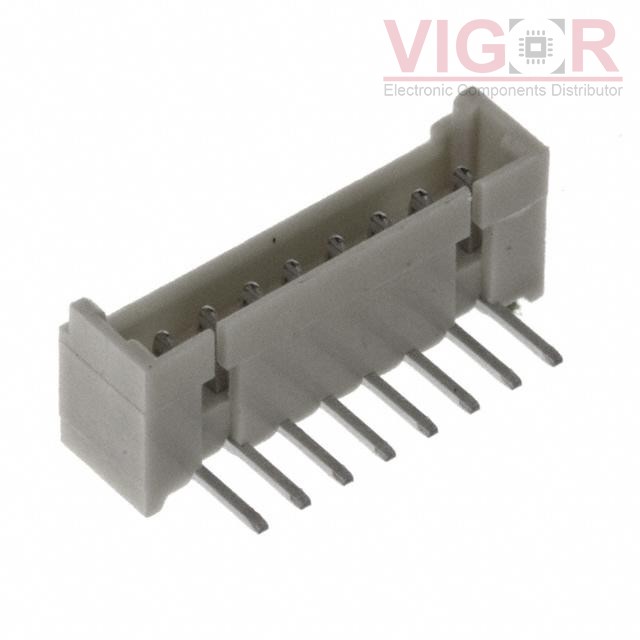

Description: CONN HEADER R/A 8POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1734829-8 PDF

Availability: 9186 pieces

Unit Price: ~~$0.90000~~

Current price of 1734829-8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1734829-8 Specifications

Type	Description
Series:	High Performance Interconnect (HPI)
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	-
Contact Length - Mating:	-
Contact Length - Post:	0.091" (2.30mm)
Overall Contact Length:	-
Insulation Height:	0.126" (3.20mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA9T), Nylon 9T, Glass Filled
Features:	-
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	1A
Voltage Rating:	125V
