5030911421

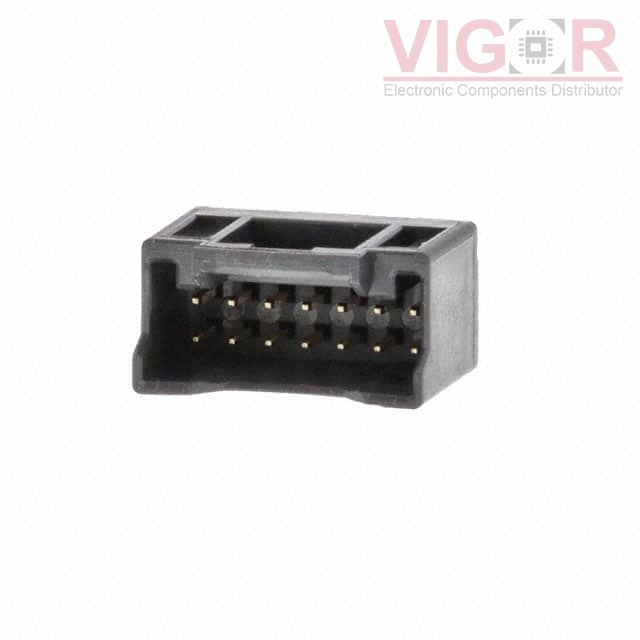

Product image
Product thumb
Part No :

5030911421

Manufacturer
Woodhead - Molex
VIGOR # :

3068639

Description
CONN HEADER VERT 14POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
5030911421 PDF
Country of origin
-
Date code
-
ads
5030911421 Specifications
Type Description
Series:iGrid 503091
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:14
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.472" (12.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.94µin (0.100µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 3127
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.41 $1.41
10 $1.24 $12.43
140 $1.07 $150.12
560 $0.88 $491.29
1120 $0.78 $873.40
5040 $0.68 $3 439.04
10080 $0.65 $6 534.06

Current price of 5030911421 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
20021121-00056T8LF

20021121-00056T8LF

CONN HEADER SMD 56POS 1.27MM

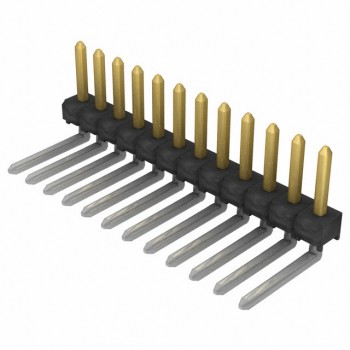

TSW-112-09-L-S-RA

TSW-112-09-L-S-RA

CONN HEADER R/A 12POS 2.54MM

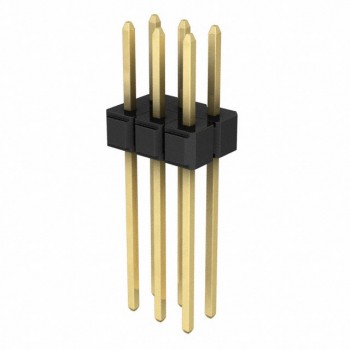

929665-04-03-I
