2PH1-15-UA

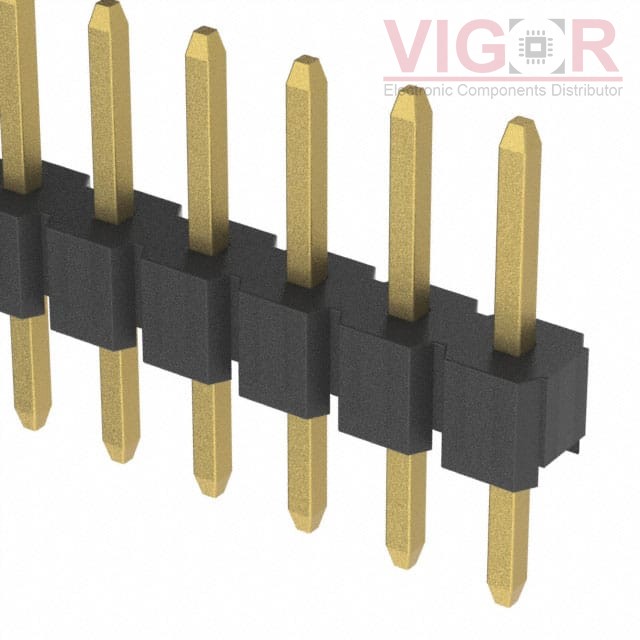

Image is for reference,
please contact us to get the real picture

Part No :: 2PH1-15-UA

Manufacturer: Adam Tech

Description: CONN HEADER VERT 15POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2PH1-15-UA PDF

Availability: 1141 pieces

Unit Price: ~~$0.39000~~

Current price of 2PH1-15-UA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2PH1-15-UA Specifications

Type	Description
Series:	2PH1
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	15
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.154" (3.91mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.343" (8.70mm)
Insulation Height:	0.079" (2.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	250VAC

Please confirm the specifications of the products when ordering.
