0901220138

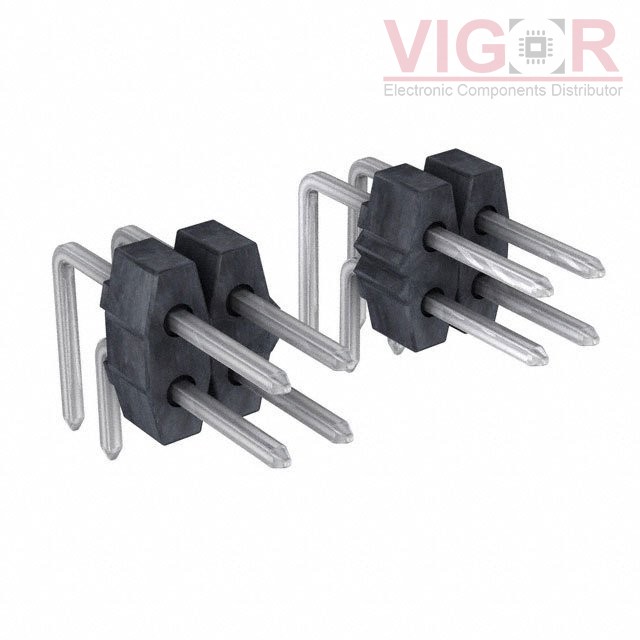

Product image
Product thumb
Part No :

0901220138

Manufacturer
Woodhead - Molex
VIGOR # :

3069180

Description
CGRID DR RA PN 675290MM TNA 36CK
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0901220138 PDF
Country of origin
-
Date code
-
ads
0901220138 Specifications
Type Description
Series:C-Grid III 90122
Package:Tray
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:36
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.266" (6.75mm)
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:1.800" (45.72mm)
Insulation Height:0.242" (6.14mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:350V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Feb 11 - Feb 15 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.56 $2.56
10 $2.46 $24.60
25 $2.26 $56.38
50 $2.15 $107.63
100 $2.05 $205.01
250 $1.79 $448.46
500 $1.74 $871.30

Current price of 0901220138 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
