280616-1

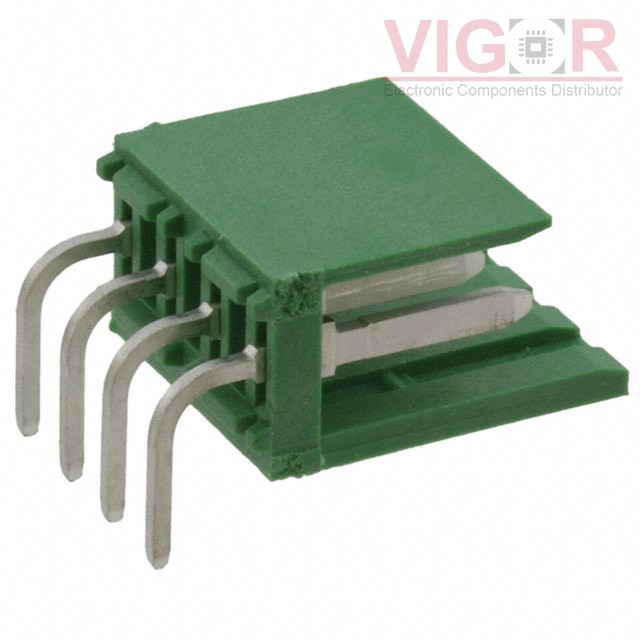

Image is for reference,
please contact us to get the real picture

Part No :: 280616-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 4POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 280616-1 PDF

Availability: 495 pieces

Unit Price: ~~$0.85000~~

Current price of 280616-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

280616-1 Specifications

Type	Description
Series:	AMPMODU Mod I
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 2 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.394" (10.00mm)
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.346" (8.80mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polycarbonate, Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Green
Current Rating (Amps):	-
Voltage Rating:	-
