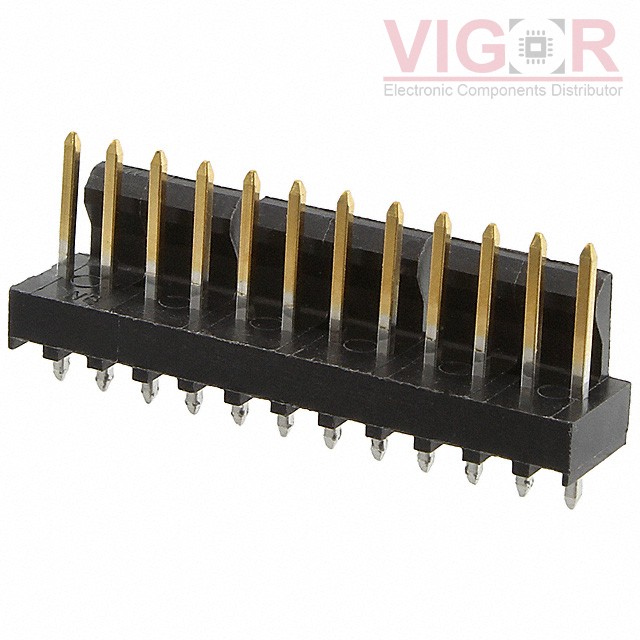

Product image
Product thumb
Part No :

1718561012

Manufacturer
Woodhead - Molex
VIGOR # :

3069462

Description
CONN HEADER VERT 12POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1718561012 PDF
Country of origin
-
Date code
-
ads
1718561012 Specifications
Type Description
Series:KK254, 171856
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.293" (7.45mm)
Contact Length - Post:0.092" (2.34mm)
Overall Contact Length:0.510" (12.95mm)
Insulation Height:0.322" (8.18mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 10 - Jan 14 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.86 $0.86
10 $0.78 $7.78
100 $0.67 $66.66
500 $0.56 $277.75
1000 $0.48 $476.14
5000 $0.42 $2 110.90
10000 $0.41 $4 126.60

Current price of 1718561012 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
DF3A-12P-2DS

DF3A-12P-2DS

CONN HEADER R/A 12POS 2MM

1-1971839-5

1-1971839-5

CONN HEADER VERT 5POS 2.5MM

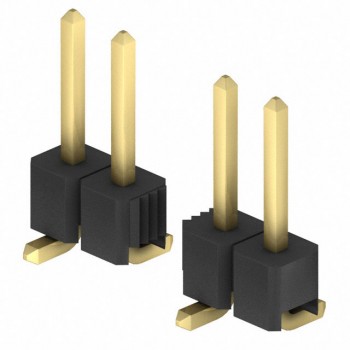

61002418221
