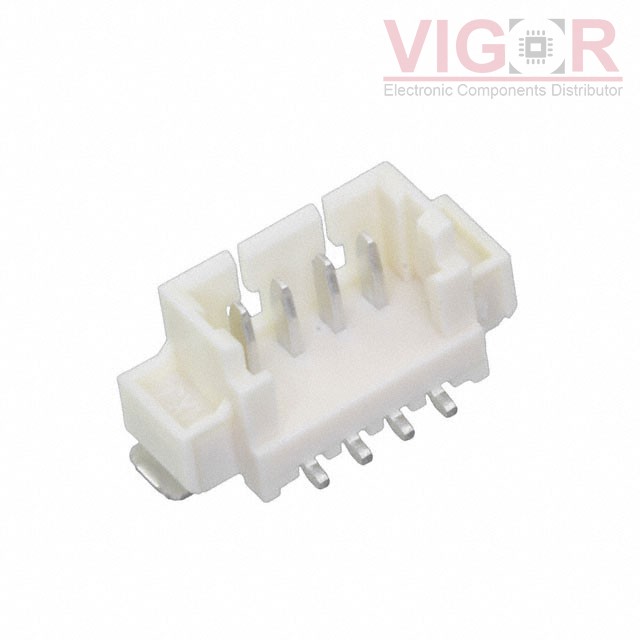

Product image
Product thumb
Part No :

0533980471

Manufacturer
Woodhead - Molex
VIGOR # :

3069622

Description
CONN HEADER SMD 4POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0533980471 PDF
Country of origin
-
Date code
-
ads
0533980471 Specifications
Type Description
Series:PicoBlade 53398
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.049" (1.25mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.185" (4.70mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 69178
Shipped from
HK warehouse
Expected Shipping Date
Apr 20 - Apr 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.6800 $0.68
1000 $0.3511 $351.12
2000 $0.3405 $680.96
3000 $0.3192 $957.60
5000 $0.3086 $1 542.80
10000 $0.2873 $2 872.80
25000 $0.2766 $6 916.00

Current price of 0533980471 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
HTSW-104-08-G-S

HTSW-104-08-G-S

CONN HEADER VERT 4POS 2.54MM

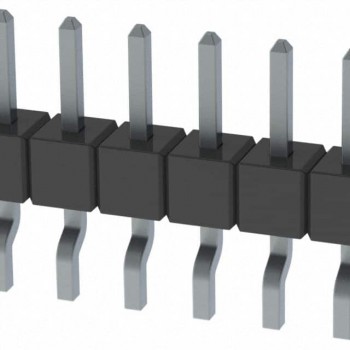

MMT-114-01-T-SH-P

MMT-114-01-T-SH-P

CONN HEADER SMD R/A 14POS 2MM

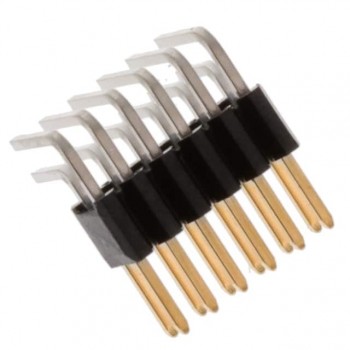

20021112-00012T4LF
