174049-2

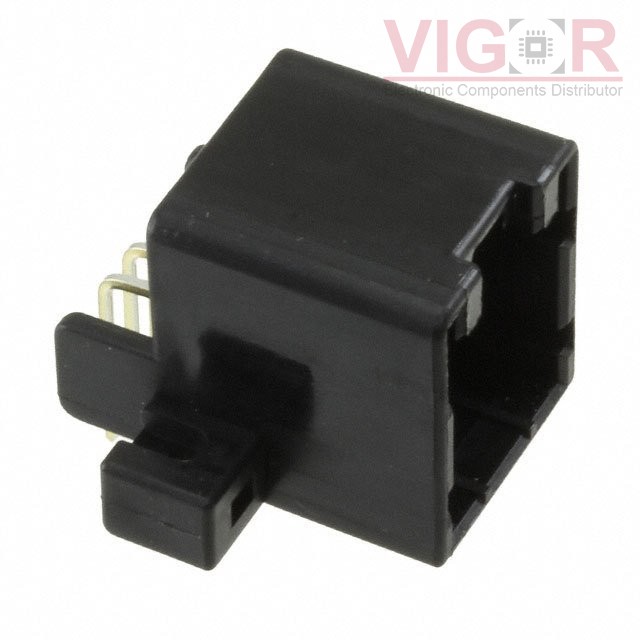

Image is for reference,
please contact us to get the real picture

Part No :: 174049-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 8POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 174049-2 PDF

Availability: 5963 pieces

Unit Price: ~~$1.92000~~

Current price of 174049-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

174049-2 Specifications

Type	Description
Series:	Multi-Lock
Package:	Bulk
Part Status:	Active
Connector Type:	-
Contact Type:	Tab
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.205" (5.20mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	0.276" (7.00mm)
Contact Length - Post:	0.157" (4.00mm)
Overall Contact Length:	-
Insulation Height:	0.658" (16.71mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Mounting Flange
Operating Temperature:	-30°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	-
