0026481132

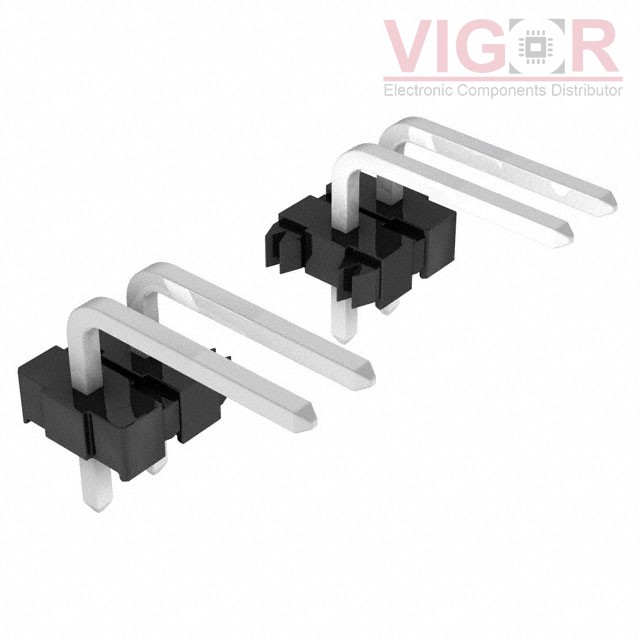

Product image
Product thumb
Part No :

0026481132

Manufacturer
Woodhead - Molex
VIGOR # :

3070259

Description
CONN HEADER R/A 13POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0026481132 PDF
Country of origin
-
Date code
-
ads
0026481132 Specifications
Type Description
Series:KK396, 41662
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:13
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.573" (14.55mm)
Contact Length - Post:0.184" (4.67mm)
Overall Contact Length:-
Insulation Height:0.128" (3.25mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
May 17 - May 21 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.3200 $1.32
10 $1.1580 $11.58
25 $1.0900 $27.25
50 $1.0448 $52.24
100 $0.9993 $99.93
250 $0.9084 $227.11
500 $0.8176 $408.80

Current price of 0026481132 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
