929665-05-18-EU

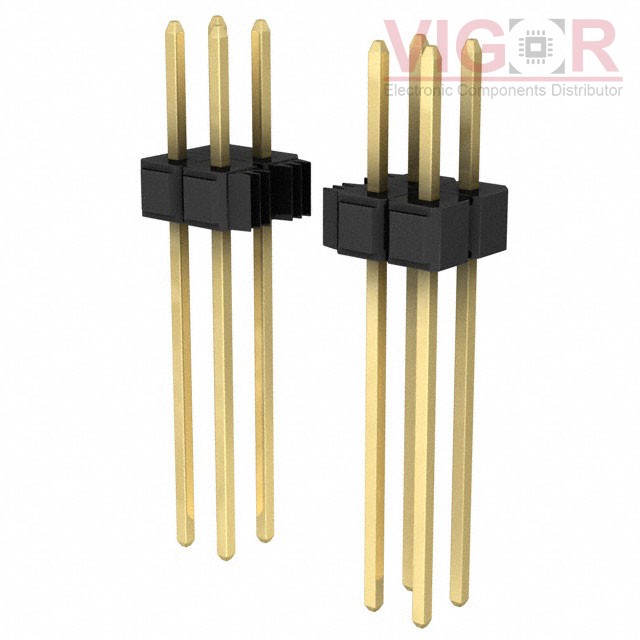

Product image
Product thumb
Part No :

929665-05-18-EU

Manufacturer
3M
VIGOR # :

3070455

Description
CONN HEADER VERT 36POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
929665-05-18-EU PDF
Country of origin
-
Date code
-
ads
929665-05-18-EU Specifications
Type Description
Series:929
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:36
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.235" (5.97mm)
Contact Length - Post:0.610" (15.49mm)
Overall Contact Length:0.945" (24.00mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.5A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $6.5800 $6.58
10 $6.3194 $63.19
25 $5.7922 $144.80
50 $5.5290 $276.45
100 $5.2658 $526.57
250 $4.6075 $1 151.88
500 $4.4759 $2 237.94

Current price of 929665-05-18-EU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
