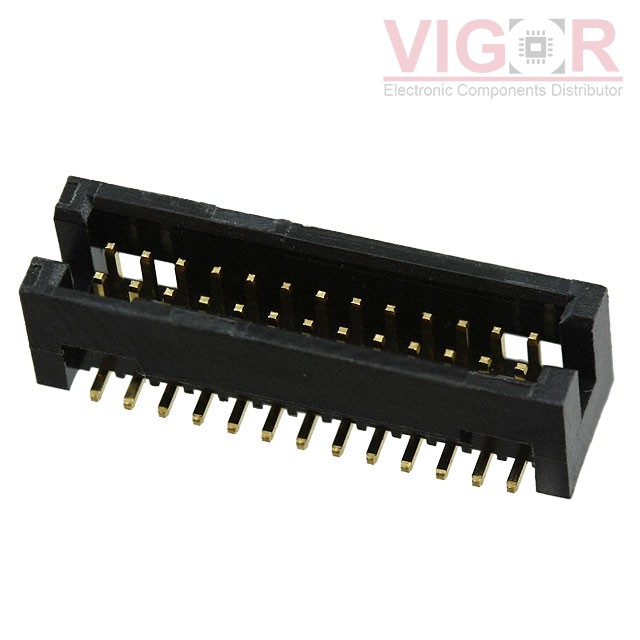

| Type | Description |
|---|---|
| Series: | Minitek127® 1.27mm |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.050" (1.27mm) |
| Number of Positions: | 26 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.120" (3.05mm) |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.220" (5.60mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | Flash |
| Contact Finish - Post: | Tin |
| Contact Material: | Copper Alloy |
| Insulation Material: | Thermoplastic |
| Features: | Pick and Place |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 1560 |
Current price of 20021221-00026D1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
