10127720-221LF

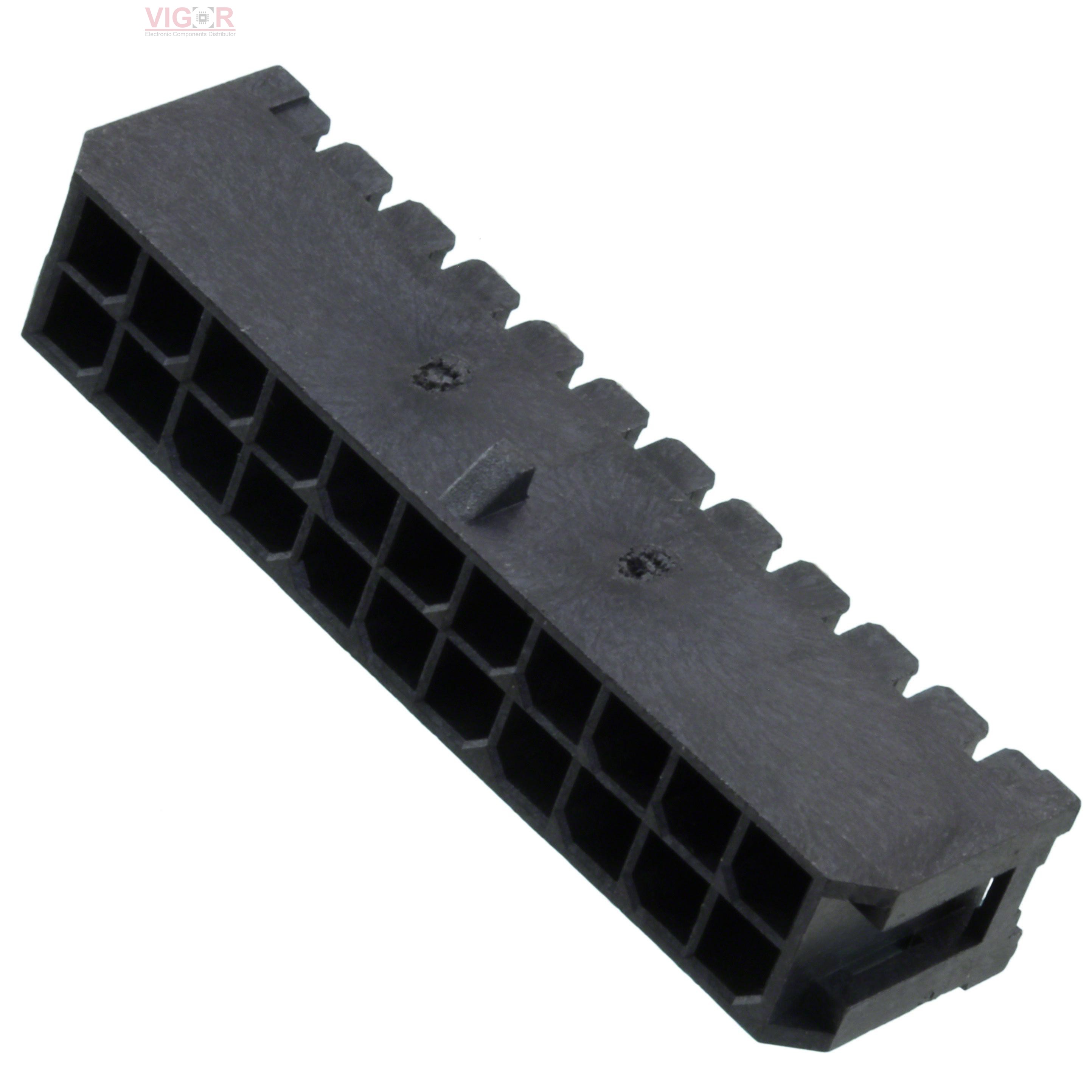

Image is for reference,
please contact us to get the real picture

Part No :: 10127720-221LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER R/A 22POS 3MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 10127720-221LF PDF

Availability: 450 pieces

Unit Price: ~~$1.42000~~

Current price of 10127720-221LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

10127720-221LF Specifications

Type	Description
Series:	Minitek® Pwr 3.0
Package:	Tray
Part Status:	Active
Connector Type:	Plug
Contact Type:	Male Pin
Pitch - Mating:	0.118" (3.00mm)
Number of Positions:	22
Number of Rows:	2
Row Spacing - Mating:	0.118" (3.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.285" (7.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	-
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	Board Lock
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
