HIF3BA-16P-2.54W(63)

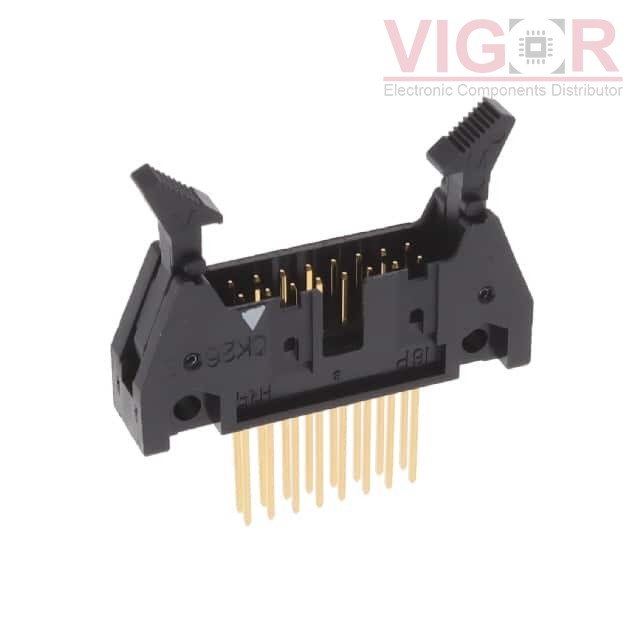

Image is for reference,
please contact us to get the real picture

Part No :: HIF3BA-16P-2.54W(63)

Manufacturer: Hirose

Description: CONN HEADER VERT 16POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: HIF3BA-16P-2.54W(63) PDF

Availability: 20 pieces

Unit Price: ~~$5.45000~~

Current price of HIF3BA-16P-2.54W(63) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HIF3BA-16P-2.54W(63) Specifications

Type	Description
Series:	HIF3B
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Wire Wrap
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.701" (17.80mm)
Contact Shape:	Square
Contact Finish - Mating:	-
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Keying Slot
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	200V

Please confirm the specifications of the products when ordering.
