68464-104HLF

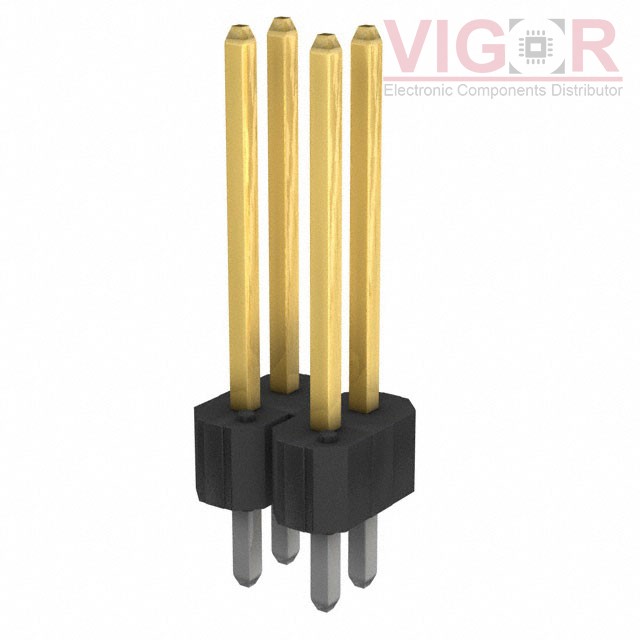

Image is for reference,
please contact us to get the real picture

Part No :: 68464-104HLF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER VERT 4POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 68464-104HLF PDF

Availability: 0 pieces

Unit Price: ~~$0.21945~~

Current price of 68464-104HLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

68464-104HLF Specifications

Type	Description
Series:	BERGSTIK® II
Package:	Bag
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.430" (10.92mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	0.650" (16.51mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold, GXT™
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	-
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
