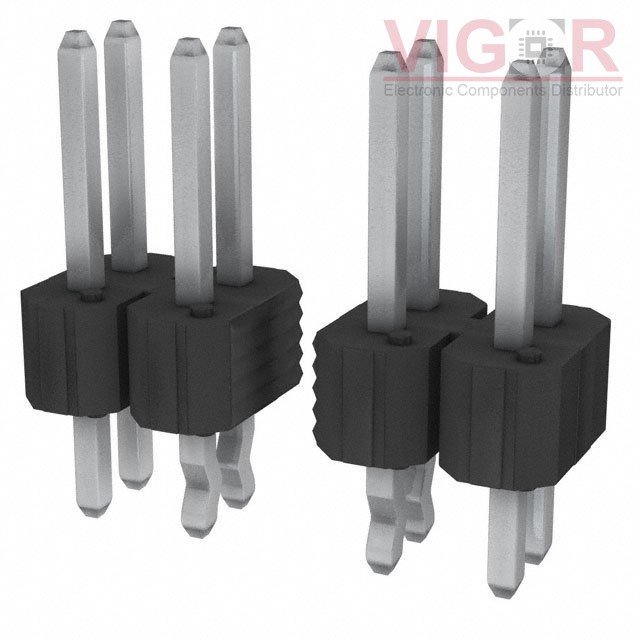

| Type | Description |
|---|---|
| Series: | BERGSTIK® II |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 32 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole |
| Termination: | Kinked Pin, Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.230" (5.84mm) |
| Contact Length - Post: | 0.120" (3.05mm) |
| Overall Contact Length: | 0.450" (11.43mm) |
| Insulation Height: | 0.100" (2.54mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | - |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 |
Current price of 69192-432HLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN HEADER VERT 50POS 2.54MM
CONN HEADER VERT 36POS 2.54MM

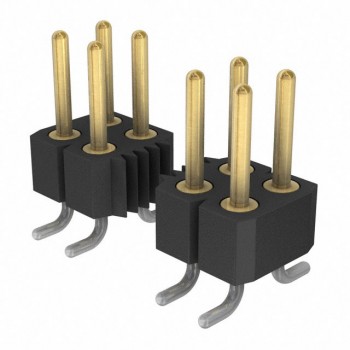

CONN HEADER SMD 18POS 2.54MM
