TSW-103-07-G-T

TSW-103-07-G-T

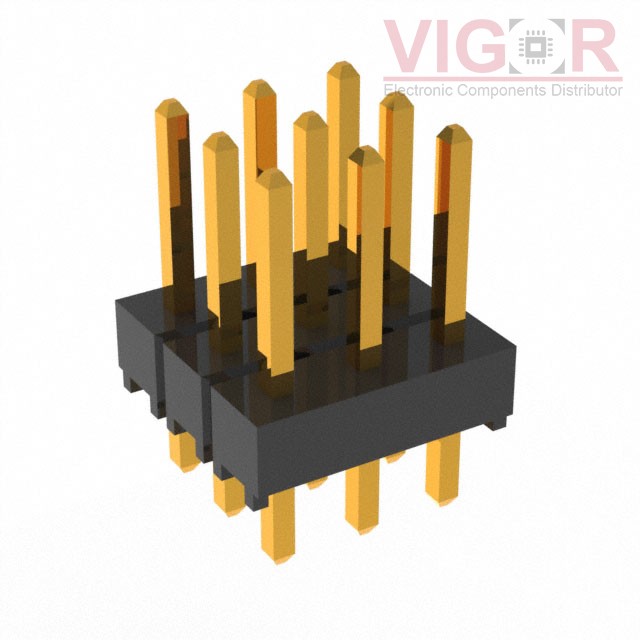

Image is for reference,
please contact us to get the real picture

Part No :

TSW-103-07-G-T

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 9POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
TSW-103-07-G-T PDF
Availability
428 pieces
Unit Price
$1.20000

Current price of TSW-103-07-G-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSW-103-07-G-T Specifications
Type Description
Series:TSW
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:9
Number of Rows:3
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.100" (2.54mm)
Overall Contact Length:0.430" (10.92mm)
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
