0010181049

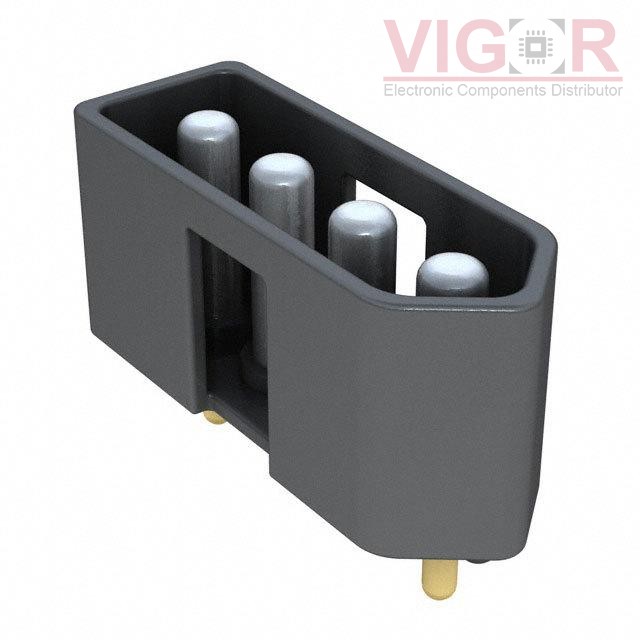

Image is for reference,
please contact us to get the real picture

Part No :: 0010181049

Manufacturer: Woodhead - Molex

Description: CONN HEADER VERT 4POS 5.03MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 0010181049 PDF

Availability: 0 pieces

Unit Price: ~~$0.77490~~

Current price of 0010181049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0010181049 Specifications

Type	Description
Series:	3099
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Female Socket; Male Pin
Pitch - Mating:	0.198" (5.03mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	-
Contact Length - Post:	0.170" (4.32mm)
Overall Contact Length:	-
Insulation Height:	0.421" (10.70mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	Polyester
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
