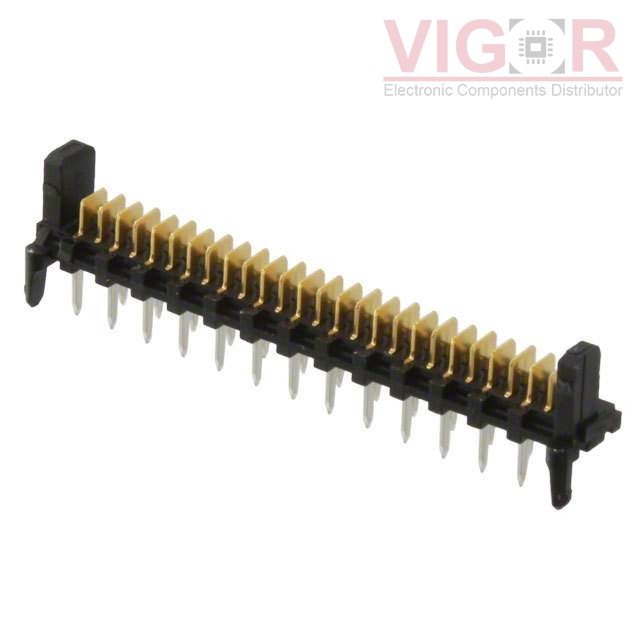

| Type | Description |
|---|---|
| Series: | Picoflex PF-50 90325 |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Blade |
| Pitch - Mating: | 0.050" (1.27mm) |
| Number of Positions: | 26 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 2 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.130" (3.30mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.252" (6.40mm) |
| Contact Shape: | Rectangular |
| Contact Finish - Mating: | Palladium-Nickel |
| Contact Finish Thickness - Mating: | 24.0µin (0.61µm) |
| Contact Finish - Post: | - |
| Contact Material: | Brass |
| Insulation Material: | Polybutylene Terephthalate (PBT), Glass Filled |
| Features: | Board Lock |
| Operating Temperature: | -40°C ~ 105°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 1.2A |
| Voltage Rating: | 250V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1764 | ||
| 5292 |
Current price of 0903257026 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
