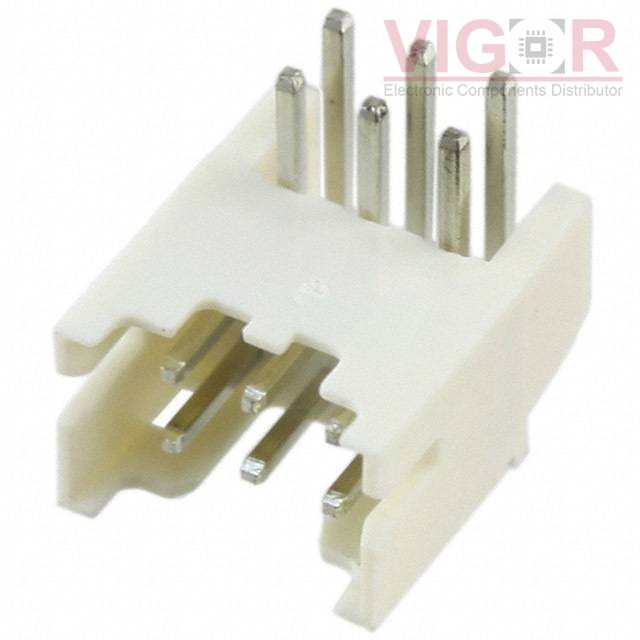

SWR204-NRTN-D03-RA-GA

Part No :: SWR204-NRTN-D03-RA-GA

Manufacturer: Sullins Connector Solutions

Description: CONN HEADER R/A 6POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SWR204-NRTN-D03-RA-GA PDF

Availability: 0 pieces

Current price of SWR204-NRTN-D03-RA-GA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SWR204-NRTN-D03-RA-GA Specifications

Type	Description
Series:	SWR204
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.197" (5.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Gray
Current Rating (Amps):	3A per Contact
Voltage Rating:	50V
