1053121310

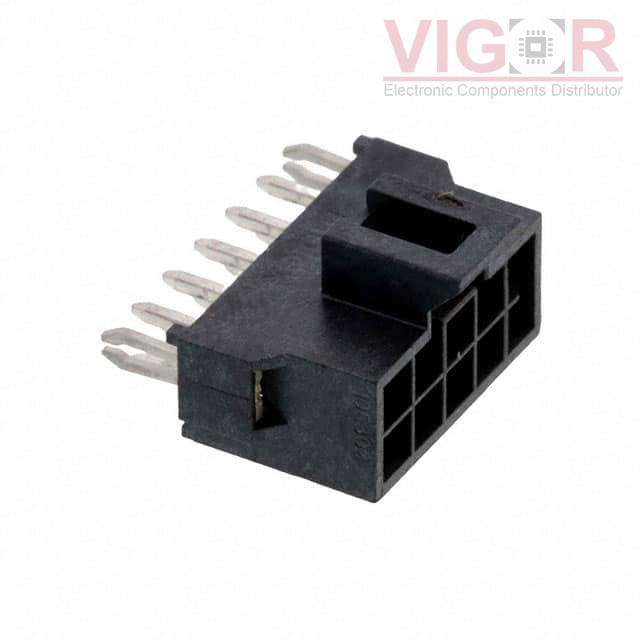

Product image
Product thumb
Part No :

1053121310

Manufacturer
Woodhead - Molex
VIGOR # :

3074038

Description
CONN HEADER VERT 10POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1053121310 PDF
Country of origin
-
Date code
-
ads
1053121310 Specifications
Type Description
Series:Nano-Fit 105312
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.098" (2.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.356" (9.05mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Lock
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1108
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.76 $2.76
10 $2.65 $26.51
102 $2.21 $225.30
510 $1.88 $957.52
1020 $1.60 $1 633.42
5100 $1.44 $7 322.22

Current price of 1053121310 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
