826634-4

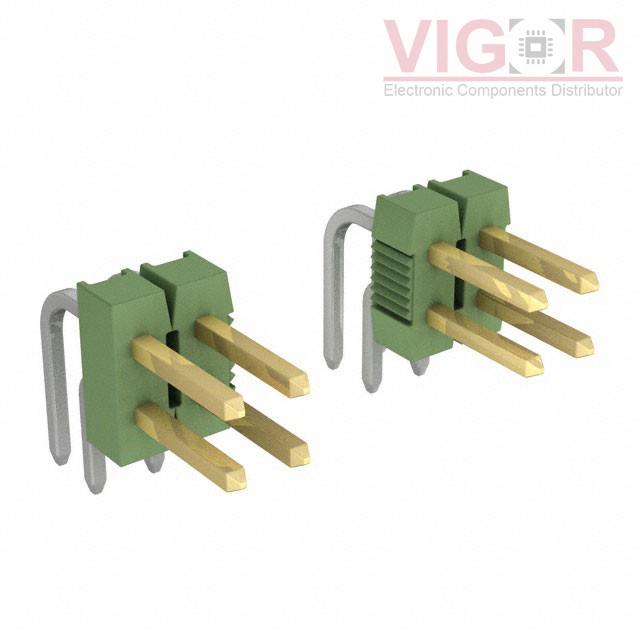

Product image
Product thumb
Part No :

826634-4

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3074200

Description
CONN HEADER R/A 8POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
826634-4 PDF
Country of origin
-
Date code
-
ads
826634-4 Specifications
Type Description
Series:AMPMODU Mod II
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.219" (5.56mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):5A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 8521
Shipped from
HK warehouse
Expected Shipping Date
Jan 27 - Jan 31 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.22 $1.22
10 $1.08 $10.75
100 $0.93 $92.78
500 $0.76 $379.54
1000 $0.67 $674.74
5000 $0.59 $2 952.05
10000 $0.56 $5 608.80

Current price of 826634-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
M20-8890345

M20-8890345

CONN HEADER SMD R/A 3POS 2.54MM

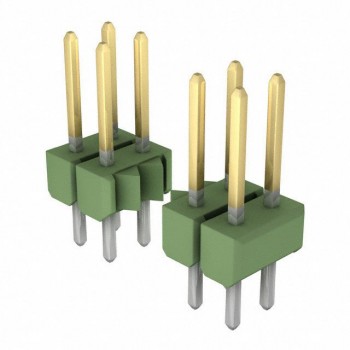

1-826656-2

1-826656-2

CONN HEADER VERT 24POS 2.54MM

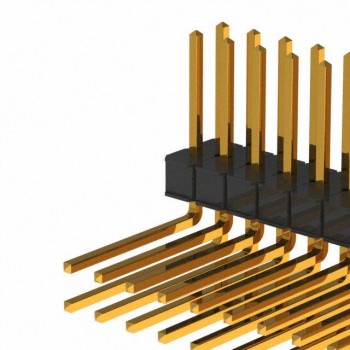

929745-02-28-I
