825433-9

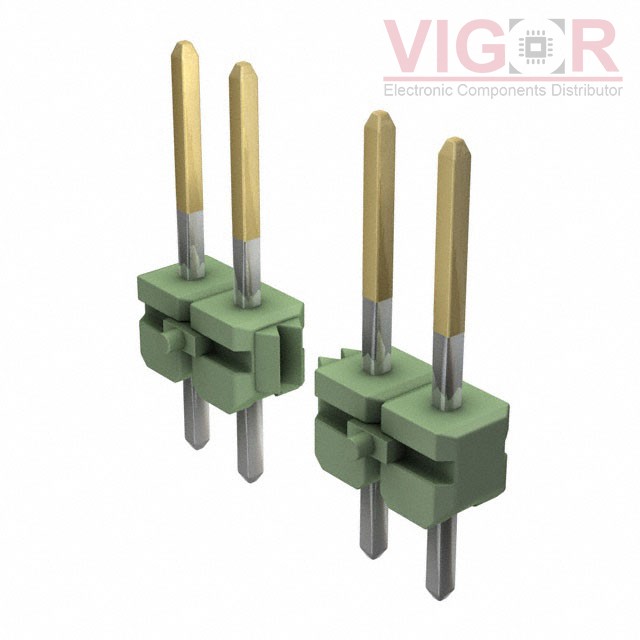

Product image
Product thumb
Part No :

825433-9

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3074349

Description
CONN HEADER VERT 9POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
825433-9 PDF
Country of origin
-
Date code
-
ads
825433-9 Specifications
Type Description
Series:AMPMODU Mod II
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.500" (12.70mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):5A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1788
Shipped from
HK warehouse
Expected Shipping Date
Jan 13 - Jan 17 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.31 $1.31
10 $1.16 $11.56
100 $1.00 $99.76
500 $0.82 $408.09
1000 $0.73 $725.49
5000 $0.63 $3 174.05
10000 $0.60 $6 030.70

Current price of 825433-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
