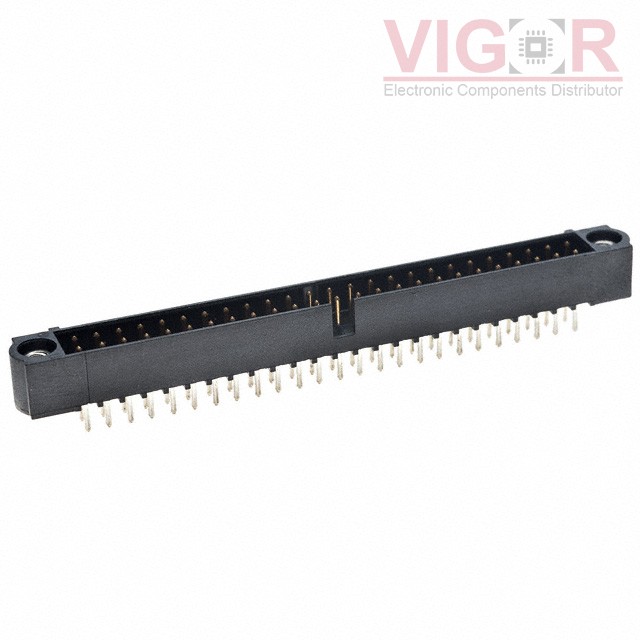

| Type | Description |
|---|---|
| Series: | Datamate J-Tek |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Positions: | 50 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Threaded |
| Contact Length - Mating: | - |
| Contact Length - Post: | 0.128" (3.25mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.220" (5.60mm) |
| Contact Shape: | Circular |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 29.5µin (0.75µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Polyphenylene Sulfide (PPS), Glass Filled |
| Features: | Keying Slot, Mating Flange |
| Operating Temperature: | -55°C ~ 125°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 2.2A |
| Voltage Rating: | 120V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 12 | ||
| 100 | ||
| 500 | ||
| 1000 |
Current price of M80-5005042 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
