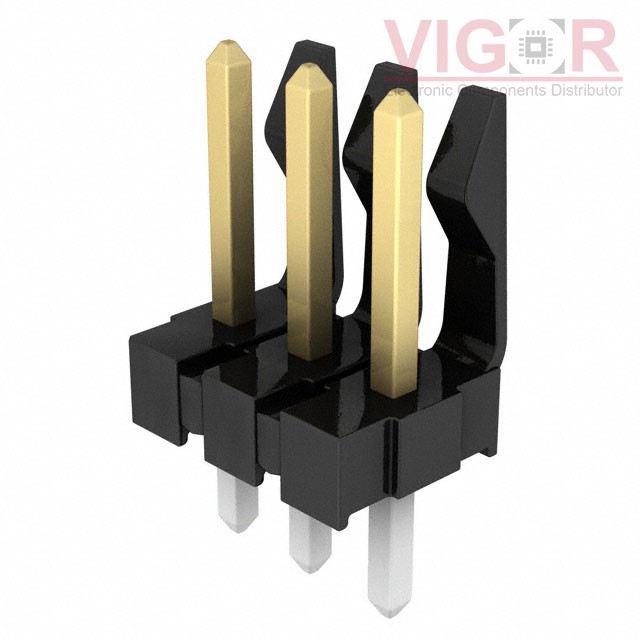

0416710002

0416710002

Image is for reference,
please contact us to get the real picture

Part No :

0416710002

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 3POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 02 - Oct 06 2025
DataSheet
0416710002 PDF
Availability
2359 pieces
Unit Price
$0.68000

Current price of 0416710002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0416710002 Specifications
Type Description
Series:KK396, 41671
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.450" (11.43mm)
Contact Length - Post:0.172" (4.37mm)
Overall Contact Length:0.750" (19.05mm)
Insulation Height:0.500" (12.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 800-V3-024-40-001101

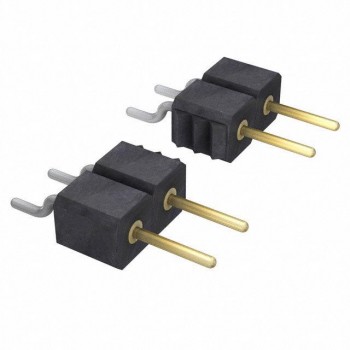

800-V3-024-40-001101

CONN HEADER SMD R/A 24POS 2.54MM
HOT TSM-102-01-T-SH-P-TR

TSM-102-01-T-SH-P-TR

CONN HEADER SMD R/A 2POS 2.54MM
HOT 804-V3-096-22-002101

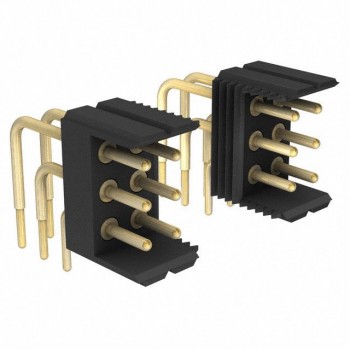

804-V3-096-22-002101

CONN HEADER R/A 96POS 2.54MM
Recently Viewed
SK55CHR7G

SK55CHR7G

DIODE SCHOTTKY 50V 5A DO214AB

0416710002

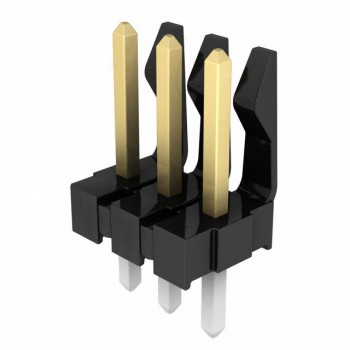

0416710002
