1-1586037-6

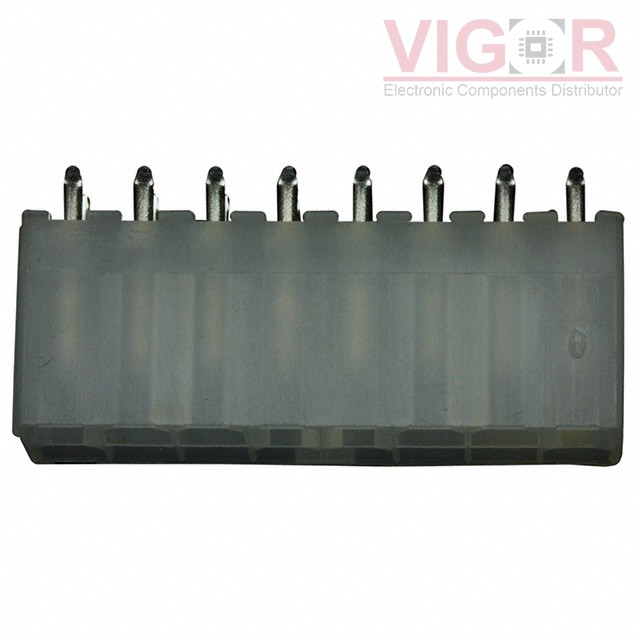

Product image
Product thumb
Part No :

1-1586037-6

Manufacturer
VIGOR # :

3076409

Description
CONN HEADER VERT 16POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1-1586037-6 PDF
Country of origin
-
Date code
-
ads
1-1586037-6 Specifications
Type Description
Series:VAL-U-LOK
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:80.0µin (2.03µm)
Contact Finish - Post:Tin
Contact Material:Brass Alloy
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):9A
Voltage Rating:600VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1635
Shipped from
HK warehouse
Expected Shipping Date
May 30 - Jun 03 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.2600 $1.26
10 $1.1199 $11.20
100 $0.9776 $97.76
500 $0.8146 $407.32
1000 $0.7332 $733.17
5000 $0.6517 $3 258.50
10000 $0.6232 $6 231.90

Current price of 1-1586037-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
TSW-120-15-G-S

TSW-120-15-G-S

CONN HEADER VERT 20POS 2.54MM

NRPN342MAMP-RC

NRPN342MAMP-RC

CONN HEADER SMD 68POS 2MM

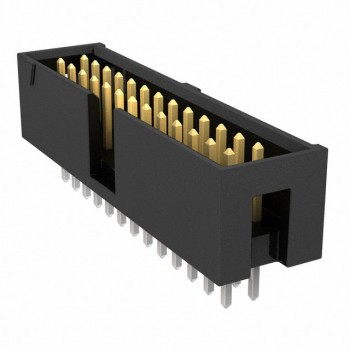

TSS-113-01-S-D
