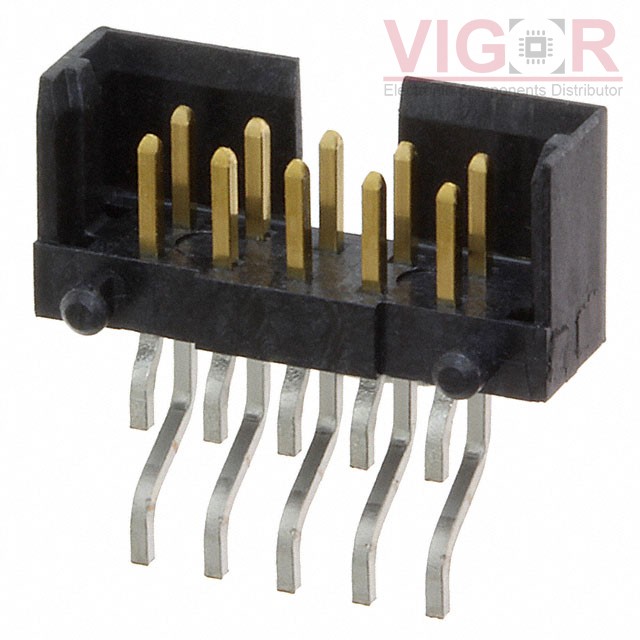

TSH-105-01-L-DH-SL

Image is for reference,
please contact us to get the real picture

Part No :: TSH-105-01-L-DH-SL

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD R/A 10POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TSH-105-01-L-DH-SL PDF

Availability: 1096 pieces

Unit Price: ~~$2.45000~~

Current price of TSH-105-01-L-DH-SL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSH-105-01-L-DH-SL Specifications

Type	Description
Series:	TSH
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.126" (3.20mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.157" (4.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	End Shrouds, Solder Retention
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
