1744427-2

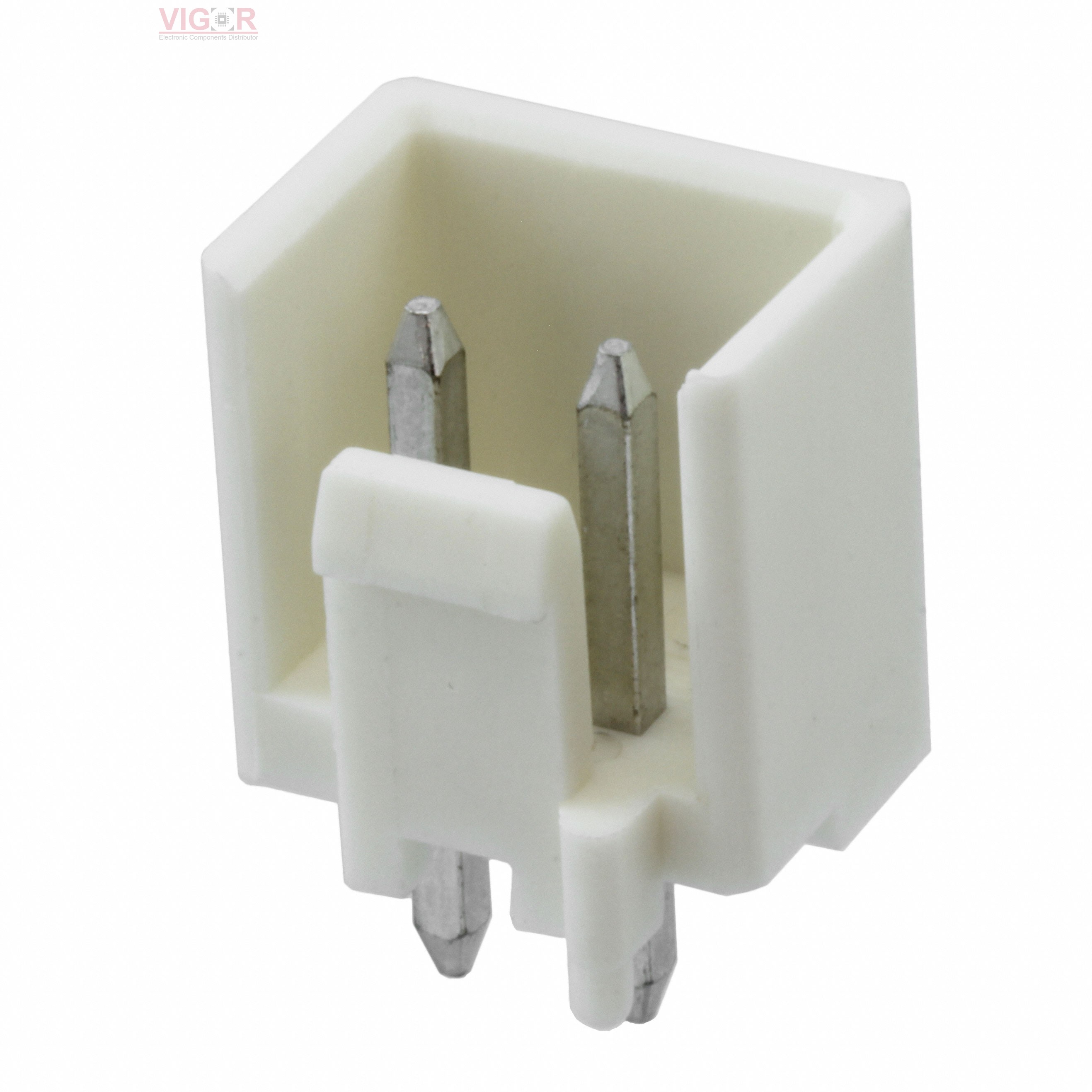

Product image
Product thumb
Part No :

1744427-2

Manufacturer
TE Connectivity AMP Connectors
VIGOR # :

3077175

Description
CONN HEADER VERT 2POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1744427-2 PDF
Country of origin
-
Date code
-
ads
1744427-2 Specifications
Type Description
Series:Economy Power
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.306" (7.77mm)
Contact Length - Post:0.142" (3.60mm)
Overall Contact Length:0.567" (14.40mm)
Insulation Height:0.472" (12.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-25°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:-
Current Rating (Amps):7.5A
Voltage Rating:250VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 29 - Feb 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.46 $0.46
10 $0.44 $4.43
25 $0.38 $9.57
50 $0.33 $16.46
100 $0.32 $31.71
250 $0.29 $71.79
500 $0.28 $137.61
1000 $0.23 $233.34
2500 $0.22 $538.48

Current price of 1744427-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
