0010897302

Product image
Product thumb
Part No :

0010897302

Manufacturer
Woodhead - Molex
VIGOR # :

3077505

Description
CONN HEADER VERT 30POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0010897302 PDF
Country of origin
-
Date code
-
ads
0010897302 Specifications
Type Description
Series:C-Grid 70280
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:30
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.107" (2.71mm)
Overall Contact Length:0.437" (11.10mm)
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 832
Shipped from
HK warehouse
Expected Shipping Date
Jan 15 - Jan 19 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.46 $3.46
10 $3.32 $33.22
25 $3.05 $76.14
50 $2.91 $145.35
100 $2.77 $276.87
250 $2.42 $605.64
500 $2.35 $1 176.68

Current price of 0010897302 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

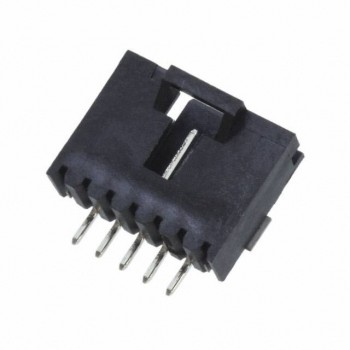

5-147324-4

5-147324-4

CONN HEADER SMD R/A 5POS 2.54MM

PBC15SAHN

PBC15SAHN

CONN HEADER VERT 15POS 2.54MM

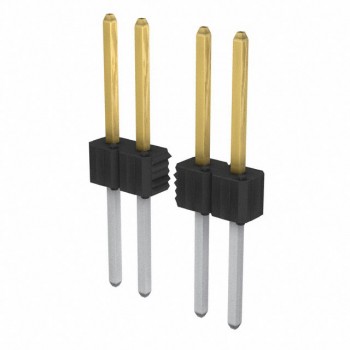

68655-236H
