TOLC-135-02-L-Q-LC

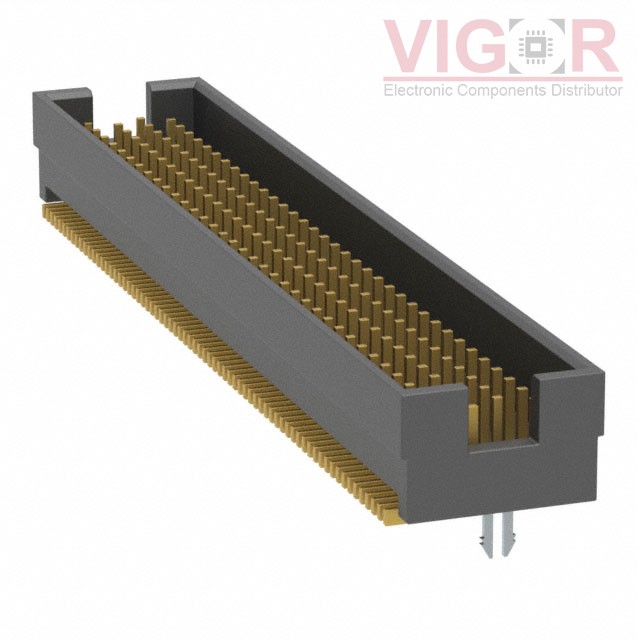

Image is for reference,
please contact us to get the real picture

Part No :: TOLC-135-02-L-Q-LC

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD 140POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TOLC-135-02-L-Q-LC PDF

Availability: 18 pieces

Unit Price: ~~$16.57000~~

Current price of TOLC-135-02-L-Q-LC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TOLC-135-02-L-Q-LC Specifications

Type	Description
Series:	FOURRAY™ TOLC
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	140
Number of Rows:	4
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.100" (2.54mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.220" (5.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Lock
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.4A per Contact
Voltage Rating:	-
