DF13-9P-1.25DS(20)

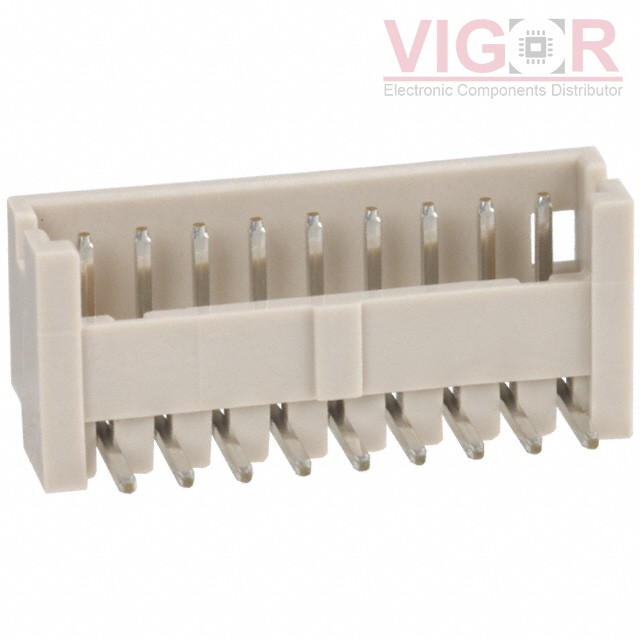

Product image
Product thumb
Part No :

DF13-9P-1.25DS(20)

Manufacturer
Hirose
VIGOR # :

3079136

Description
CONN HEADER R/A 9POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
DF13-9P-1.25DS(20) PDF
Country of origin
-
Date code
-
ads
DF13-9P-1.25DS(20) Specifications
Type Description
Series:DF13
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.091" (2.30mm)
Overall Contact Length:-
Insulation Height:0.142" (3.60mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):1A
Voltage Rating:150V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 29
Shipped from
HK warehouse
Expected Shipping Date
Jan 25 - Jan 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.98 $0.98
37 $0.81 $29.92
111 $0.74 $82.29
518 $0.61 $314.18
1036 $0.54 $558.54

Current price of DF13-9P-1.25DS(20) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
892-80-030-10-001101

892-80-030-10-001101

CONN HEADER VERT 30POS 2.54MM

EHF-120-01-L-D-SM-LC-P

EHF-120-01-L-D-SM-LC-P

CONN HEADER SMD 40POS 1.27MM

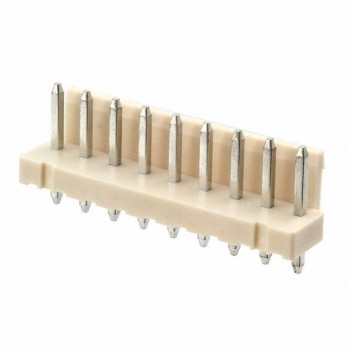

1744489-9
