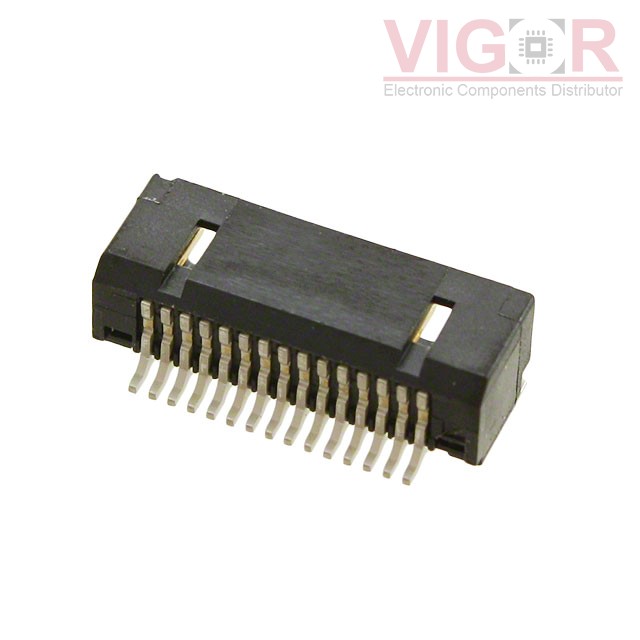

FI-W15P-HFE

Part No :: FI-W15P-HFE

Manufacturer: JAE Electronics

VIGOR # :: 3079295

Description: CONN HEADER SMD R/A 15POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: FI-W15P-HFE PDF

Country of origin: -

Date code: -

FI-W15P-HFE Specifications

Type	Description
Series:	FI
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	15
Number of Rows:	2
Row Spacing - Mating:	0.055" (1.40mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.094" (2.40mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.146" (3.70mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin or Tin-Alloy
Contact Material:	Copper Alloy
Insulation Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Solder Retention
Operating Temperature:	-40°C ~ 80°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	200V

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 36

Shipped from

HK warehouse

Expected Shipping Date

Jan 15 - Jan 19 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.86~~	~~$3.86~~
10	~~$3.70~~	~~$37.01~~
100	~~$3.08~~	~~$308.40~~
500	~~$2.62~~	~~$1 310.69~~
1000	~~$2.24~~	~~$2 235.88~~
5000	~~$2.00~~	~~$10 022.90~~

Current price of FI-W15P-HFE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

861400061YO6LF

CONN HEADER VERT 6POS 2.54MM

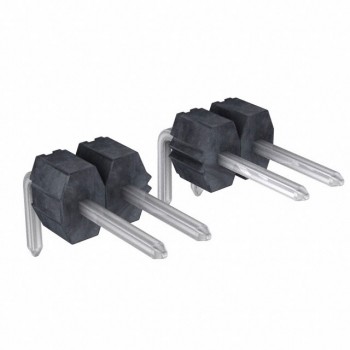

0901210148

CONN HEADER R/A 28POS 2.54MM

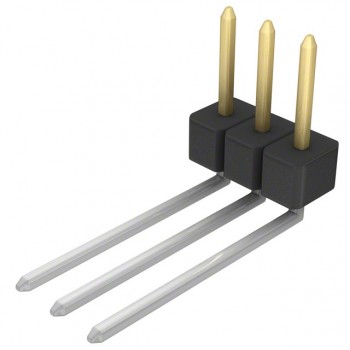

PBC03SBEN
