1-2013325-4

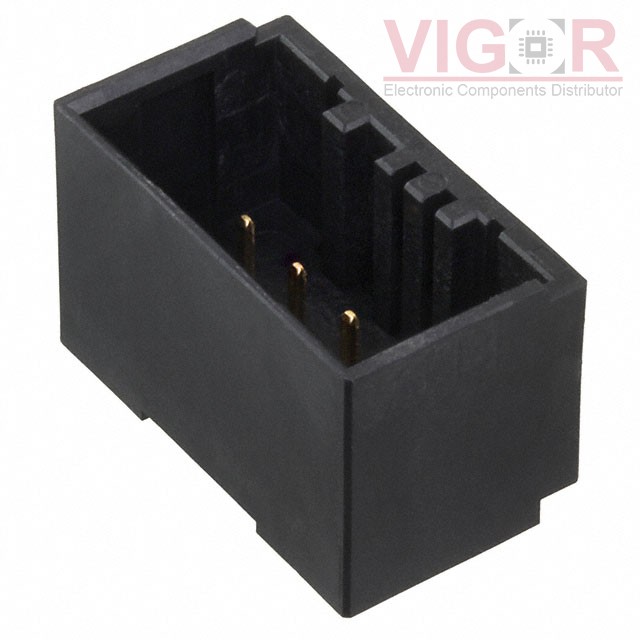

Product image
Product thumb
Part No :

1-2013325-4

Manufacturer
VIGOR # :

3079301

Description
CONN HEADER VERT 8POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1-2013325-4 PDF
Country of origin
-
Date code
-
ads
1-2013325-4 Specifications
Type Description
Series:Dynamic D-1900
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.138" (3.50mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.130" (3.30mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.490" (12.44mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Lock
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):4A
Voltage Rating:150V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.5900 $2.59
23 $2.3689 $54.49
46 $2.2348 $102.80
69 $2.1452 $148.02
115 $2.0559 $236.43
253 $1.8772 $474.92
506 $1.7431 $881.99
1012 $1.5196 $1 537.84
2507 $1.4302 $3 585.54

Current price of 1-2013325-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
CI0103P1VK0-NH

CI0103P1VK0-NH

3 POS 2.00MM(.079) SINGLE ROW ST

FTMH-110-02-F-DV-ES-A-P-TR

FTMH-110-02-F-DV-ES-A-P-TR

CONN HEADER SMD 20POS 1MM

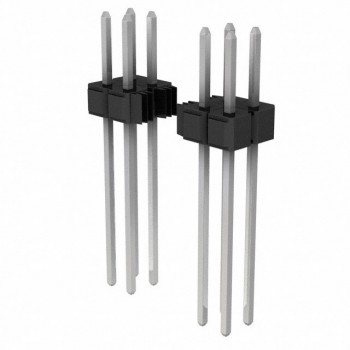

929836-05-06
