794068-1

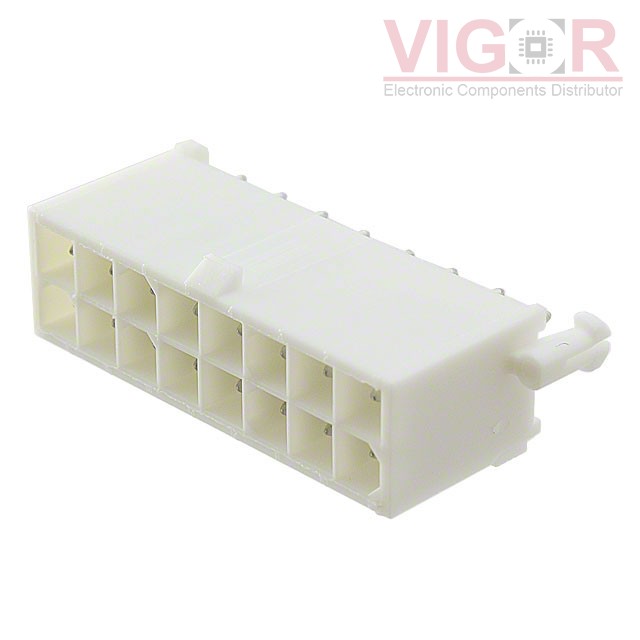

Product image
Product thumb
Part No :

794068-1

Manufacturer
VIGOR # :

3079369

Description
CONN HEADER VERT 16POS 4.14MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
794068-1 PDF
Country of origin
-
Date code
-
ads
794068-1 Specifications
Type Description
Series:Mini-Universal MATE-N-LOK
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.163" (4.14mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.163" (4.14mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.175" (4.45mm)
Overall Contact Length:-
Insulation Height:0.531" (13.50mm)
Contact Shape:Circular
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock
Operating Temperature:-20°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.9900 $3.99
10 $3.8346 $38.35
100 $3.1955 $319.55
500 $2.7161 $1 358.07
1000 $2.3167 $2 316.71
5000 $2.0771 $10 385.30

Current price of 794068-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
A2-16PA-2.54DSA(71)

A2-16PA-2.54DSA(71)

CONN HEADER VERT 16POS 2.54MM

MMT-102-02-T-SH

MMT-102-02-T-SH

CONN HEADER SMD R/A 2POS 2MM

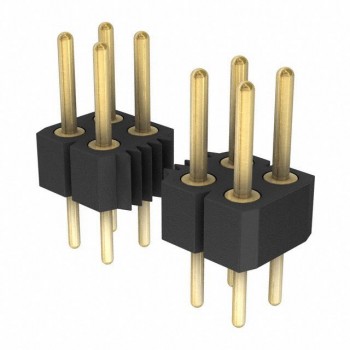

802-10-046-10-001101
