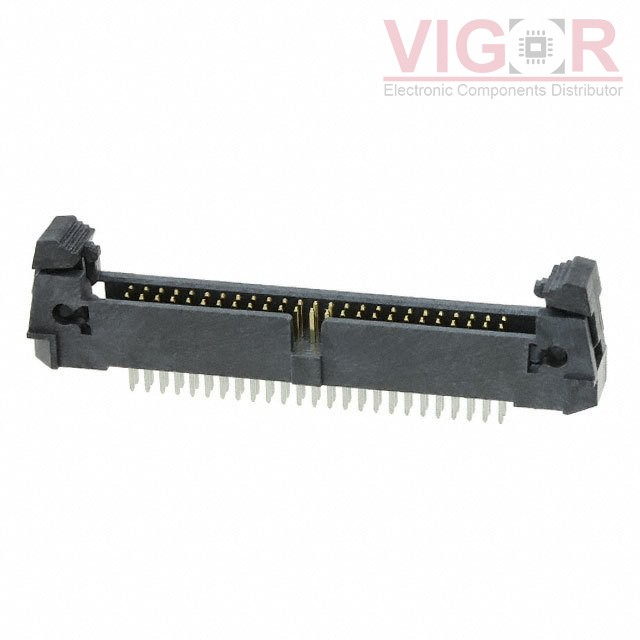

M50-3552542

Part No :: M50-3552542

Manufacturer: Harwin

Description: CONN HEADER VERT 50POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: M50-3552542 PDF

Availability: 1121 pieces

Unit Price: ~~$3.98000~~

Current price of M50-3552542 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M50-3552542 Specifications

Type	Description
Series:	Archer M50
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	0.107" (2.71mm)
Overall Contact Length:	0.351" (8.92mm)
Insulation Height:	0.325" (8.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Keying Slot
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1.75A per Contact
Voltage Rating:	-
