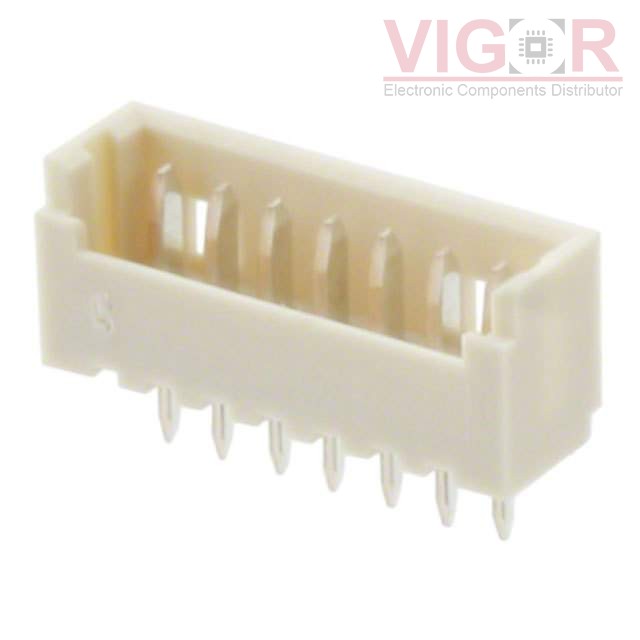

| Type | Description |
|---|---|
| Series: | PicoBlade 53047 |
| Package: | Tray |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Blade |
| Pitch - Mating: | 0.049" (1.25mm) |
| Number of Positions: | 7 |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Cable/Wire |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Detent Lock |
| Contact Length - Mating: | 0.089" (2.25mm) |
| Contact Length - Post: | 0.091" (2.30mm) |
| Overall Contact Length: | - |
| Insulation Height: | 0.165" (4.20mm) |
| Contact Shape: | Rectangular |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 35.4µin (0.90µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Polyamide (PA66), Nylon 6/6 |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Natural |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 2000 | ||
| 6000 | ||
| 10000 |
Current price of 0530470710 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
