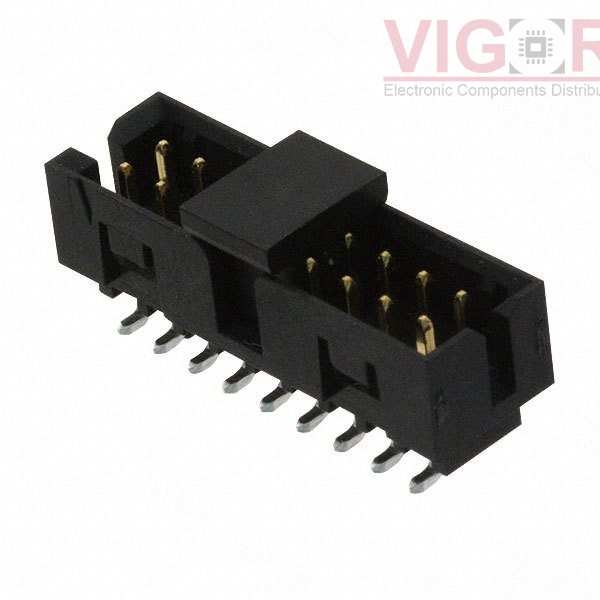

| Type | Description |
|---|---|
| Series: | Milli-Grid 87832 |
| Package: | Tape & Reel (TR)Cut Tape (CT) |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Positions: | 18 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board or Cable |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Latch Holder |
| Contact Length - Mating: | 0.141" (3.60mm) |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.252" (6.40mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Polyamide (PA), Nylon, Glass Filled |
| Features: | Board Guide, Keying Slot, Pick and Place |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | - |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 500 | ||
| 1000 | ||
| 1500 | ||
| 2500 | ||
| 5000 | ||
| 12500 |
Current price of 0878325822 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

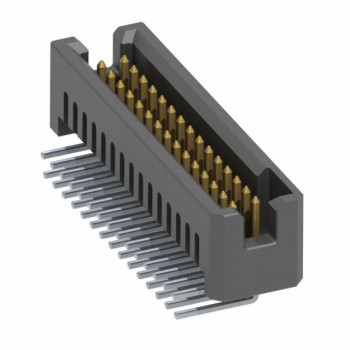

CONN HEADER R/A 30POS 1.27MM
