MTMM-130-09-G-D-340

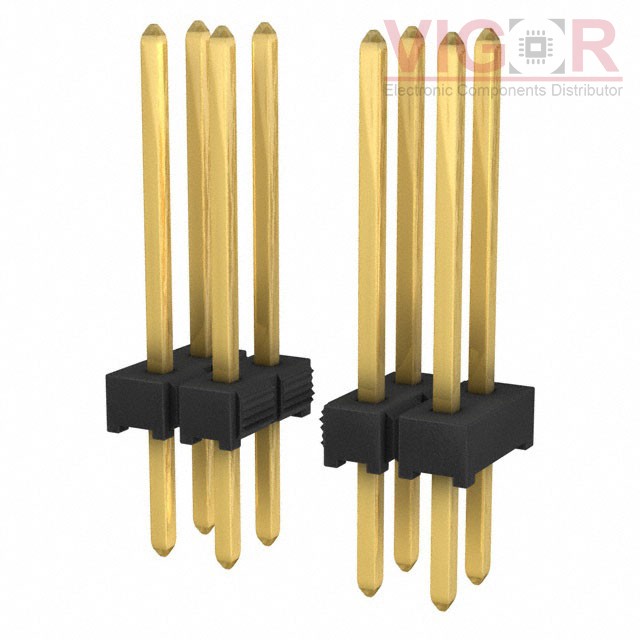

Image is for reference,
please contact us to get the real picture

Part No :: MTMM-130-09-G-D-340

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 60POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MTMM-130-09-G-D-340 PDF

Availability: 77 pieces

Unit Price: ~~$10.36000~~

Current price of MTMM-130-09-G-D-340 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MTMM-130-09-G-D-340 Specifications

Type	Description
Series:	MTMM
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	60
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.340" (8.64mm)
Contact Length - Post:	0.135" (3.43mm)
Overall Contact Length:	0.535" (13.59mm)
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	20.0µin (0.51µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
