2015-2X05G00DB

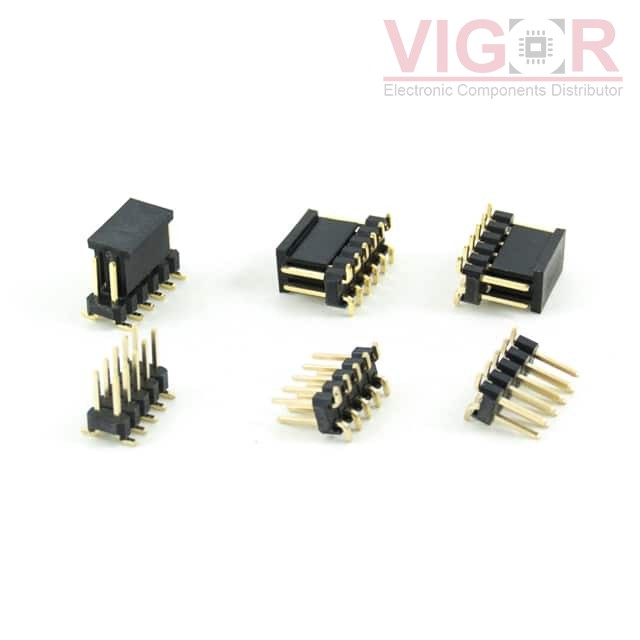

Image is for reference,
please contact us to get the real picture

Part No :: 2015-2X05G00DB

Manufacturer: Oupiin

Description: PIN HEADER, DOUBLE ROW, 10 PIN,

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2015-2X05G00DB PDF

Availability: 244 pieces

Unit Price: ~~$0.51000~~

Current price of 2015-2X05G00DB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2015-2X05G00DB Specifications

Type	Description
Series:	2015
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.244" (6.20mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.098" (2.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Plastic
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	-
Current Rating (Amps):	2A
Voltage Rating:	-
