TSM-125-03-T-DV-P-TR

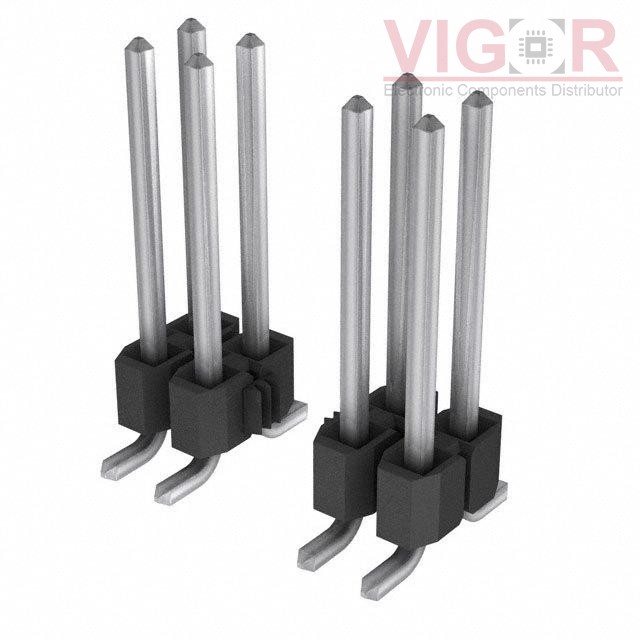

Image is for reference,
please contact us to get the real picture

Part No :

TSM-125-03-T-DV-P-TR

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 50POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
TSM-125-03-T-DV-P-TR PDF
Availability
0 pieces
Unit Price
$4.58544

Current price of TSM-125-03-T-DV-P-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:TSM
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:50
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.420" (10.67mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.100" (2.54mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Pick and Place
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
