5810124011

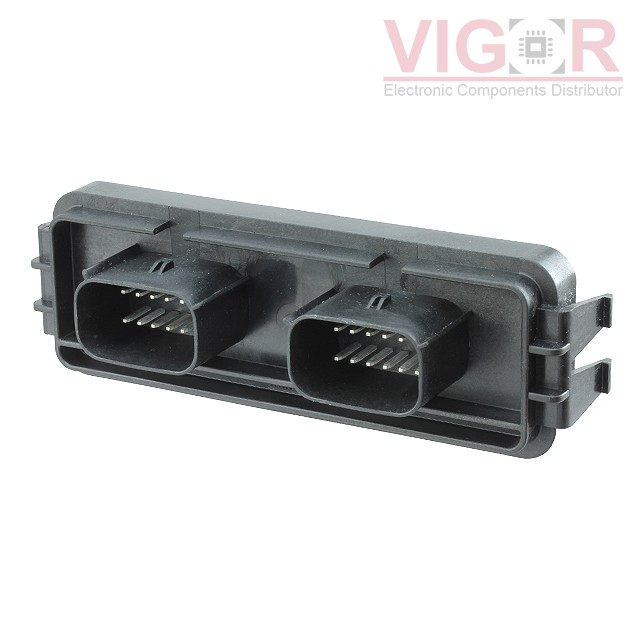

Product image
Product thumb
Part No :

5810124011

Manufacturer
Vitelec / Cinch Connectivity Solutions
VIGOR # :

3080458

Description
CONN HEADER R/A 24POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
5810124011 PDF
Country of origin
-
Date code
-
ads
5810124011 Specifications
Type Description
Series:ModICE® MX
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.138" (3.50mm)
Number of Positions:24 (12 + 12)
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:-
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:1.610" (40.90mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polymer, Glass Filled
Features:-
Operating Temperature:-40°C ~ 85°C
Ingress Protection:IP67, IP69K
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):10A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 14 - Jan 18 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $15.98 $15.98
10 $14.53 $145.25
25 $14.16 $354.06
50 $13.07 $653.64
100 $12.35 $1 234.66
250 $11.26 $2 814.31
500 $10.53 $5 265.47
1000 $9.66 $9 659.42

Current price of 5810124011 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
