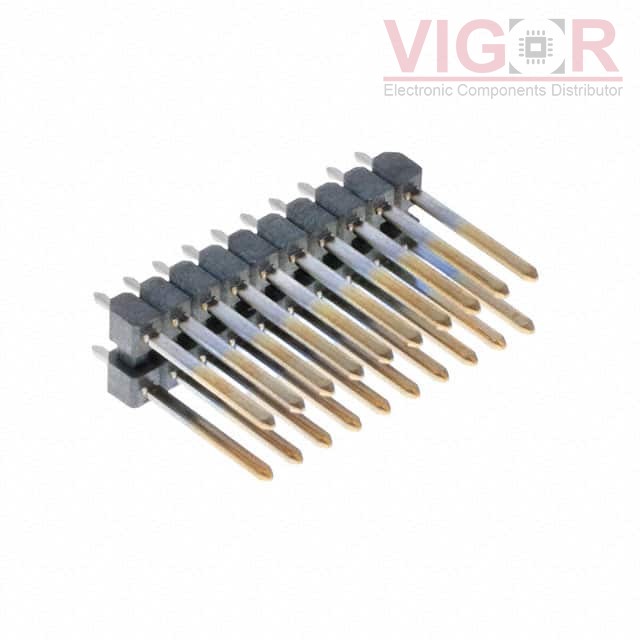

Product image
Product thumb
Part No :

0757575201

Manufacturer
Woodhead - Molex
VIGOR # :

3080987

Description
CONN HEADER VERT 20POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0757575201 PDF
Country of origin
-
Date code
-
ads
0757575201 Specifications
Type Description
Series:MX150 75757
Package:Tube
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Blade
Pitch - Mating:0.138" (3.50mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.236" (6.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.633" (16.09mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.931" (23.64mm)
Insulation Height:0.177" (4.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:2.00µin (0.051µm)
Contact Finish - Post:Tin
Contact Material:Cartridge Brass
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2520
Shipped from
HK warehouse
Expected Shipping Date
Jan 03 - Jan 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $8.21 $8.21
10 $7.86 $78.65
210 $6.50 $1 364.42
630 $5.47 $3 446.96
1050 $4.79 $5 026.81

Current price of 0757575201 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

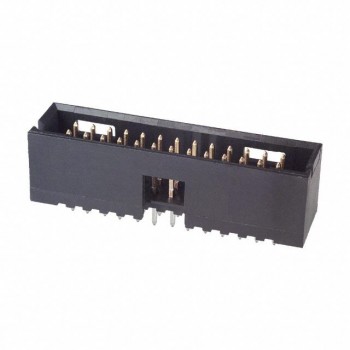

6-102619-1

6-102619-1

CONN HEADER VERT 26POS 2.54MM

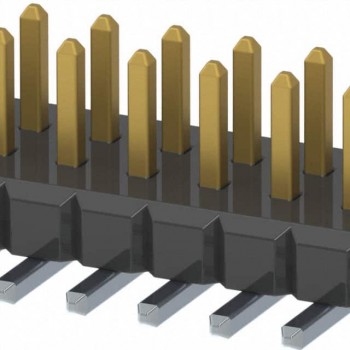

FTM-135-03-F-DV
